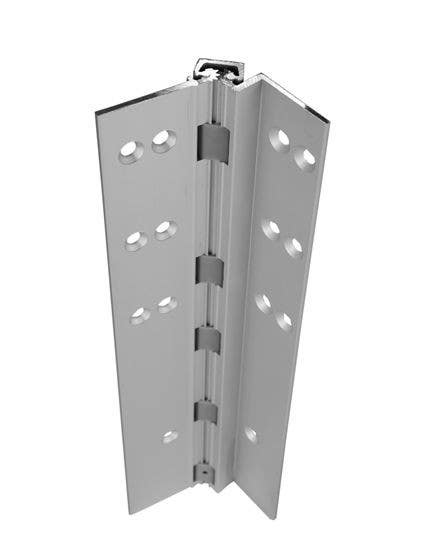

ABH A130HD Aluminum Continuous Geared Fully Concealed Safety Hinge 1/16" Inset
$113.40
As low as:
- Model:
-
A130HD
This item ships via LTL (Less than truckload) freight.
Item normally ships out within 1-2 Weeks (excluding transit time).If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote - BHMA Grade 1
- Full Concealed, Heavy Duty
- 1/16" Door Inset
- Safety hinges are designed for use on frames without stops
- Used Primarily in schools, nursing homes and day care faciities to avoid fingers and/or other objects being closed in the door
- 9/16" gap between frame leaf and door leaf when door is closesd
- 48" door width maximum
- 450 lbs. door weight maximum
- Average weight per unit = 10 lbs
- 12-24 X 3/4" undercut self drilling, thread forming tek machine screws
- 79", 83", 85", 95" and 120"
- Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specifiy "FR" option for 3 hour rating)
- Approved for use on wood swinging type fire doors rated up to and including 60 minutes (Specifiy "FR" option for 90 minute rating)
- Door Side: Not required for door weight up to 200 lbs. ABH recommends a minimum 12 gauge plate/channel for heavier doors.
- Frame Side: Not required for door weight up to 200 lbs. For doors more than 200 lbs., a 16 gauge channel is recommended.
- Fasteners
- 12-24 × 7/8" undercut self drilling, thread forming tek machine screws
- Standard Lengths
- 79", 83", 85", 95" and 120"
- Finishes
- Clear, dark bronze and black anodized
Details: ABH A130HD Aluminum Continuous Geared Fully Concealed Safety Hinge 1/16" Inset
Features
Fasteners:
Standard Lengths:
Fire Rating
Reinforcement:
Specifications
Downloads
