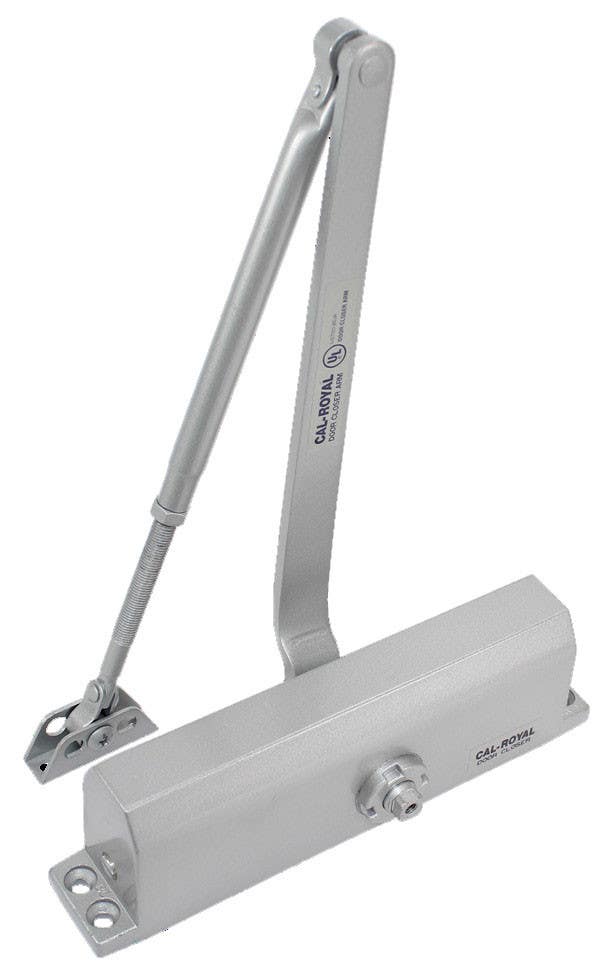

Cal-Royal 700 Series Dual Valve Sized Door Closers Grade 1
$57.21
As low as:
- Model:
-
720-42243916
Item normally ships out within 1-2 Weeks (excluding transit time).If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote - Meets and Exceeds ANSI Standard A156.4 GRADE 1
- Universal Hole Pattern Offering Versatility and Precision Engineering for New and Retrofit Market
- Choice of Regular, Parallel, or Hold-Open Arms for All Standard Applications
- Sized Door Closer: sizes 2, 3, 4, and 5
- Hydraulic Door Closer with Optional Back Check
- Optional Slim Plastic Cover
- Hydraulic Door Closer with Dual Valve, Closing and Latching Speed Controlled by Two Separate Regulating Valves
- Universal Application, Non-Handed, Designed for All Standard Installations
- Reinforced Type Adjustable Tube Arm
- Rack and Pinion Operation Contained in a High Tensile Precision Cast Aluminum Housing for the Highest Quality
- High-Quality Hydraulic Fluid for High Lubricity and Constant Lubrication
- The Streamlined Design Permits Installation on Most Commercial and Residential Applications without Adaptors
- Sized Door Closer. 720 Size 2, 730 Size 3, 740 Size 4 and 750 Size 5
-
Ideal for New Construction and Renovations, Including Office and Retail, Hotels, Commercial and Industrial Buildings
Details: Cal-Royal 700 Series Dual Valve Sized Door Closers Grade 1
Description
Features
Specifications
| DESCRIPTION | SIZE 2 | SIZE 3 | SIZE 4 | SIZE 5 |
| Length of Closer Body | 8 ⅞” | 8 ⅞" | 9 ¾” | 9 ¾” |
| Horizontal Mounting Holes | 8 ³⁄₁₆" | 8 ³⁄₁₆” | 9 ⅟₁₆” | 9 ⅟₁₆” |
| Vertical Mounting Holes | ¾” | ¾” | ¾” | ¾" |
| Height of Closer Body | 1 ¾” | 1 ¾” | 1 ¾” | 1 ¾” |
| Projection from Door | 2 ⅞” | 2 ⅞” | 2 ⅞” | 2 ⅞” |
Applications
Downloads
