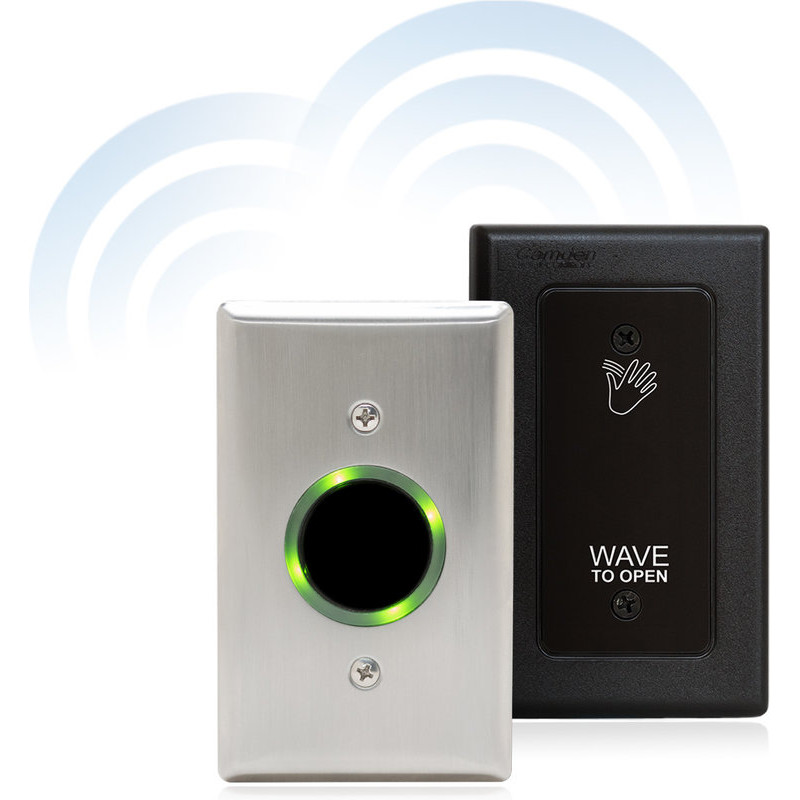

Camden Door Control CM-324 Economical Wired, 1 Relay SureWave Touchless Switch

$156.00

Model:: CM-324

Item is normally in stock and ships out within 3-5 Business days (excluding transit time).

If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@FBIsecurity.com
or call us for pricing 800-523-2924
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Camden Door Control CM-324 Economical Wired, 1 Relay SureWave Touchless Switch

CM-324 Series (original) single relay wired hands-free switches features an operating range of 1-30", adjustable time delay of 1-5 seconds, and provides superior performance in all ambient lighting conditions.

Features

Indoor/outdoor use minus 4 Degree F to plus 153 Degree F (minus 20 Degree C to plus 85 Degree C), gasket included.
Advanced active infra-red technology with fast response.
Heavy duty relay contacts.
Adjustable operating range up to 28", refer to model specification.
Adjustable time delay, refer to model specifcation.
Selectable fail safe/fail secure operation.
CM-324 1 Relay No inputs.

Specifications

Technology: Active Infra-red, utilizing microburst sensing technology
Voltage: 12-24V AC/DC
Contact Type: (1) SPDT Form 'C'
Contact Rating: 5 Amps, 30 V
Current Draw: 60 mA
Adjustable Operating Range: 1"-30" (25.4mm-762mm)
Time Delay: 1-5 Seconds
Operation: Selectable Fail Safe/Fail Secure
Motion Sensing Modes: Momentary
Relay Operating Modes: Event

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
