Camden Door Control CM-54/55/57 Series Aura Illuminated Push Plate Enclosure, 4-1/2"

$102.70

Model:: CM-54/55/57-42312653

Item is normally in stock and ships out within 3-5 Business days (excluding transit time).

If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@FBIsecurity.com
or call us for pricing 800-523-2924
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Camden Door Control CM-54/55/57 Series Aura Illuminated Push Plate Enclosure, 4-1/2"

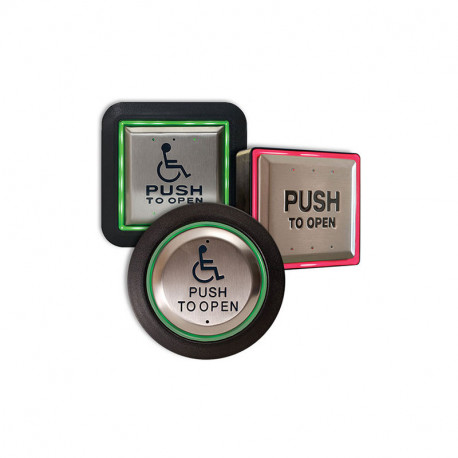

Aura CM-54 (surface square) CM-55 (flush square) and CM-57 (flush round) illuminated push plate enclosures.

'i' and 'GR' illuminated models offer 3 additional features: selection of backlight color activation, audible sounder confirming switch activation and Form 'C' contacts to switch your device.

Aura illuminated mounting boxes are compatible with the widest range of 4-1/2" All-Active push plate switches in the industry.

Features

Illuminated surface and flush mount box compatible with any CM-40, CM-45 or CM-46 'All Active' push plate switch
Red/Green and Red/Green/Blue models available
High efficiency LED technology
Improves switch visibilty, even in daylight
Flame and impact resistant polycarbonate construction
Selectable 12/24V, AC/DC

Specifications

Voltage: 12 or 24V AC/DC Contact Rating: 3 A @ 30 VDC Sounder: 85 DB Current Draw: CM-54i, CM-55i: 130 mA. CM-57GR: 110 mA Lumina (Blue): 1500 MCD Lumina (Red): 5760 MCD Lumina (Green): 3780 MCD Contact Type: CM-54i, CM055i, CM-57GR: 1 SPDT Form 'C' Dimensions: CM-54i: 5-1/4" x 5-1/4" x 2-1/8" (133mm x 133mm x 54mm) CM-55i: 6-1/2" x 6-1/2" x 2" (165mm x 165mm x 51mm) CM-57GR: 6-5/8" Dia. x 2" (168mm x 51mm)

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Camden Door Controls Warranty

Voltage:	12 or 24V AC/DC
Contact Rating:	3 A @ 30 VDC
Sounder:	85 DB
Current Draw:	CM-54i, CM-55i: 130 mA. CM-57GR: 110 mA
Lumina (Blue):	1500 MCD
Lumina (Red):	5760 MCD
Lumina (Green):	3780 MCD
Contact Type:	CM-54i, CM055i, CM-57GR: 1 SPDT Form 'C'
Dimensions:	CM-54i: 5-1/4" x 5-1/4" x 2-1/8" (133mm x 133mm x 54mm) CM-55i: 6-1/2" x 6-1/2" x 2" (165mm x 165mm x 51mm) CM-57GR: 6-5/8" Dia. x 2" (168mm x 51mm)
