Camden Door Control CM-6000 Series Locking Push Button

$131.95

Model:: CM-6000-42312624

Item is normally in stock and ships out within 3-5 Business days (excluding transit time).

If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@FBIsecurity.com
or call us for pricing 800-523-2924
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Camden Door Control CM-6000 Series Locking Push Button

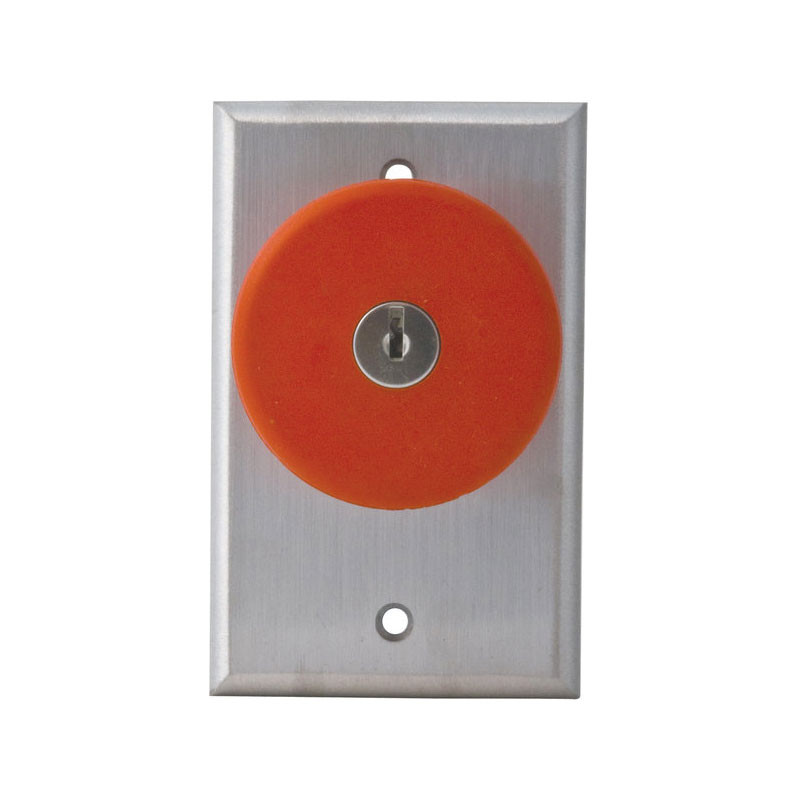

CM-6000 Series Locking push buttons are specially designed and manufactured for lock-out or emergency applications. Once pushed, the button latches and cannot be reset unless the key is inserted and turned in the center locking cylinder. Red buttons have a 2-3/8" (60mm) diameter. They are supplied with a 1/4" thick brushed aluminum single gang faceplate.

Features

Large 2-3/8" (60mm) locking red button.
Vandal resistant 1/4" thick aluminum plate.
Ideal for lock-out or emergency shut-down applications.

Specifications

Voltage: 12/24V DC.
Switch Type: Push To Lock (Maintained).
Current Rating: 6A @ 30 VDC
Temp Range: -13°F to 158°F (-25°C to 75°C).
Dimensions: 4-1/2" X 2-3/4" X 1-3/4" (114mm X 70mm X 44mm).

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Camden Door Controls Warranty
