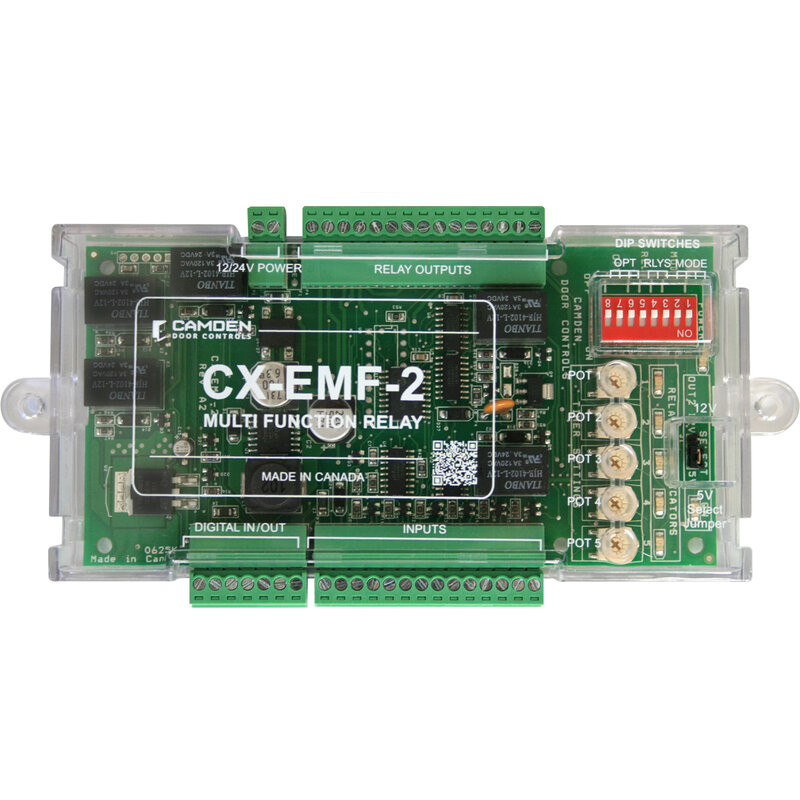

Camden Door Control CX-EMF-2 Multi Function Relay
$328.90
As low as:
- Model:
-
CX-EMF-2-42312585
-
Item is normally in stock and ships out within 3-5 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Camden Door Control CX-EMF-2 Multi Function Relay
EMF-2 is Camden's most sophisticated door control relay and is designed to easily and quickly support a variety of specialized door-control applications. A dedicated 12V/5V LED output suitable for an illuminated "Occupied" sign is also provided. Also available in secure lockable metal cabinet versions (EMF-2M or EMF-2ABM) suitable for wall mounting.
Features
- Microprocessor control
- 3 mode selector switch
- 5 adjustable timers, 1-30 seconds each
- LEDs for visual confirmation
- May be used on normally locked and normally unlocked restroom doors
- 12/24V AC/DC
- Plug-In connectors facilitate wiring
- SPDT contacts rated 3 amps @ 30 VDC
- 7 dry inputs
- Use with fail-safe and fail-secure locks
- Enclosed plastic case or mounted in metal enclosure
- 3 year warranty
Specifications
- Voltage
- 12/24V AC/DC.
- Current Draw
- 150mA Nominal, 500mA Maximum.
- Response Time
- 0.3 Seconds.
- Input
- 7 Dry Momentary Contacts and 1 Digital.
- Output
- 5 X Form 'C' (SPDT), 1 Digital Output.
- Contact Rating
- 3A 30V DC.
- Electrical Life
- 500,000 Operations 1/2 rated Capacity.
- Time Delay
- 5 Pots adjustable from 1-30 Seconds.
- Dimensions CX-EMF-2
- 6-7/8" L X 2-7/8" W X 7/8" D (173mm X 72mm X 22mm).
- Dimensions CX-EMF-2M/2ABM
- 12" L X 7-1/2" W X 3-3/4" D (305mm X 190mm X 95mm).
- Mounting CX-EMF-2
- Double Sided Foam Tape.
- Mounting CX-EMF-2M, CX-EMF-2ABM
- 4 X Number 8 Metal Screws.
- Enclosure CX-EMF-2
- Gray Plastic Case.
- Enclosure CX-EMF-2M, CX-EMF-2ABM
- Beige Metal Cabinet.
Applications
- Advanced automatic door and security control including ATM Vestibule Control (Banks), two-door unsecured washroom in shared-use facility, 2 or 3 door Airlock (with auto-crossing), 2 to 5 door Airlock and 2 door Mantrap. Used where 'Assistance Required' input/output required in restroom applications.
