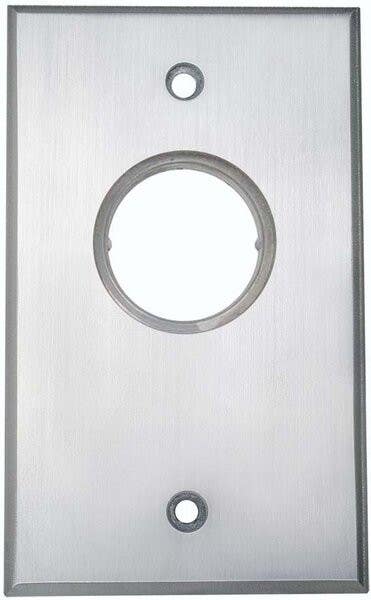

Camden Door Control CM-1100/CM-2000 Flush Mount Key Switch - Cast Aluminum Faceplate
$74.75
As low as:
- Model:
-
CM-1100
-
Item is normally in stock and ships out within 3-5 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Camden Door Control CM-1100/CM-2000 Flush Mount Key Switch - Cast Aluminum Faceplate
Camden vandal resistant key switches feature a 1/4" thick faceplate, with one-piece faceplate and switch bracket design. 1 or 2 contact switches can be mounted. Camden key switches offer the widest range of stock switch configurations in the industry. They accept virtually any 1" - 1-1/4" mortise cylinder and cam (sold separately).
Features
- Indoor or outdoor flush applications
- Accepts standard mortise cylinders ( 1" - 1-1/4" )
- Mullion style - only 1-3/4" wide.
- Heavy duty 1/4" thick aluminum plate.
- 1 piece die cast construction.
- Locators prevent cylinder from spinning.
- Cylinder sits flush to faceplate.
- Tamper proof screws and driver provided.
- No set screw required.
- Provision for 2 internal switches.
- Heat shrink protective sleeve over contacts.
Specifications
- Contact Rating
- 6 A @ 30 VDC
- Switch Life
- 100,000 cycles
- Temp Range
- 32°F to 85°F (0°C to +85°C)
- Dimensions
- Single Gang Faceplate: 4-1/2" X 2-3/4" X 1-1/2" (114mm X 70mm X 42mm); Narrow Faceplate: 4-1/2" x 1-3/4" x 1-1/2" (114mm x 44m x 42mm)
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
