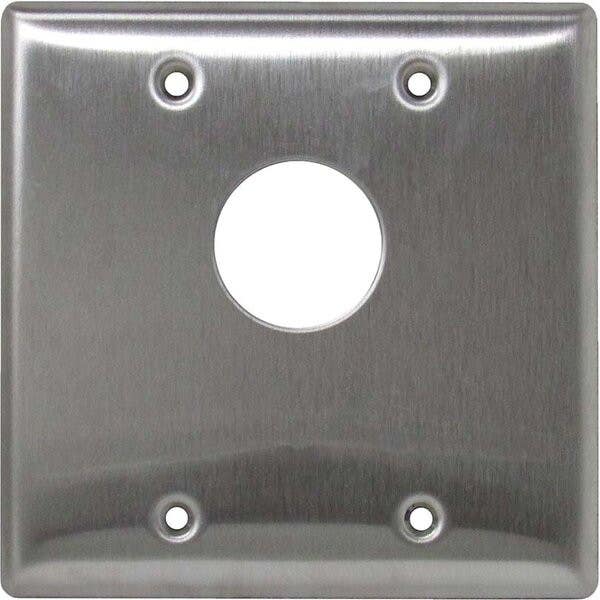

Details: Camden Door Control CM-3200/CM-3500 Series Double Gang Key Switch - Stainless Steel Faceplate
'Camden Tough' double gang stainless steel key switches offer thicker faceplate for better vandal resistance, rounded metal edges for safer installation and a pre-assembled switch mounting bracket to reduce installation time. They accept virtually any 1" - 1-1/4" mortise cylinder and camCamden CM-3200 Tough double Gang stainless steel key switches offer thicker faceplates for better vandal resistance, rounded metal edges for safer installation and accept virtually any 1" to 1-1/4" mortise cylinder.
Features
- Left and/or right operation
- Accepts standard mortise cylinders, 1" to 1-1/4"
- Heavy duty double gang stainless steel faceplate
- Locators prevent cylinders from spinning
- Tamper proof screws and driver provided
- Indoor and outdoor flush applications
- Provision for up to 4 internal switches
- Heat shrink protective sleeve over contacts
- Color coded 18 AWG soldered leads
- 3 year warranty
- Note: Mortise cylinder sold separately.
Specifications
- Contact Rating
- 6 A @ 30 VDC
- Switch Life
- All: 100,000 cycles.
- Temp Range
- 32°F to 85°F (0°C to +85°C)
- Dimensions
- CM-1200 Series: 4-1/2" X 4-1/2" X 1-5/8"(114mm X 114mm X 41mm), CM-2200 Series: 4-1/2"H x 1-3/4"W x 1-5/8"D (114mm x 44mm x 41mm)
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
