HES 610 Multi-Purpose Electromechanical Lock
$99.60
- Model:
-
610-42267544
-
Item normally ships out within 1-2 Weeks (excluding transit time).
If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote

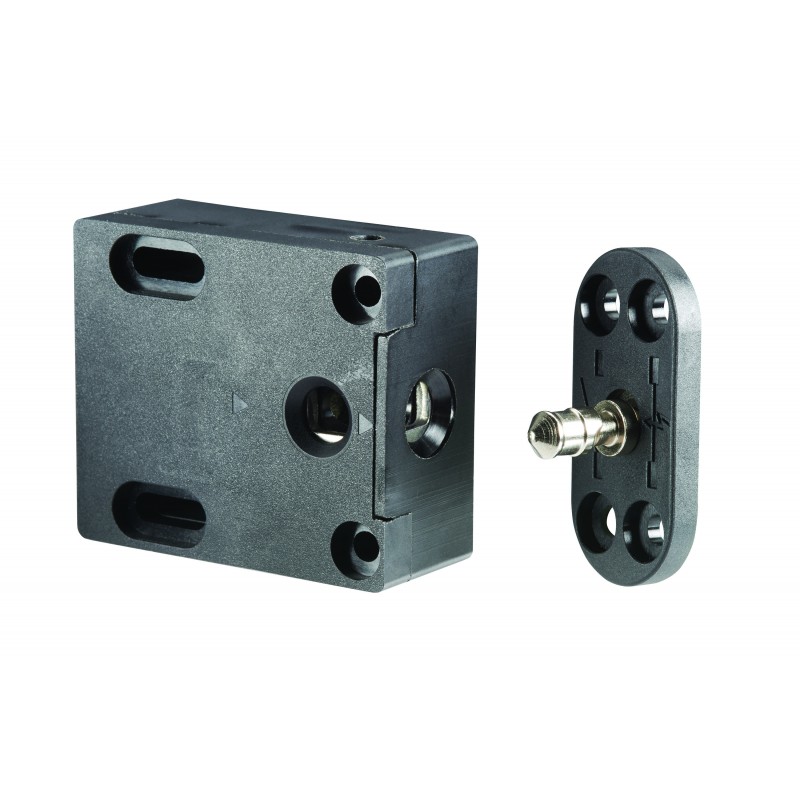

Details: HES 610 Multi-Purpose Electromechanical Lock
The HES 610 Cabinet Lock can be triggered by a simple relay as part of an access control system or with a stand-alone keypad. The HES 610 is available with or without locked state monitoring and has over 200 lbs of holding force.
Features
- Fail safe / fail secure (field selectable)
- Holding force: 200 lbs
- Compact design fits most drawers and cabinets
- Versatile installation either at the side or front of cabinets
- 610LM option includes locked state monitoring
Specifications
- Battery Backup
- No
- Voltage
- 12/24 Dual Voltage
- Current 12v AC
- 140
- Current 12v DC
- 260
- Input Voltage
- 12/24 Dual Voltage
- Monitoring Options
- Locked State Monitoring
- Monitoring Installation
- Field Installable
- Monitoring Type
- Switch
- Motor Duty [DC]
- Continuous
- PoE Friendly
- Yes
- Power Source
- Hardwired
- Maximum Operating Temperature (Degree F)
- 104
- Minimum Operating Temperature (Degree F)
- 14
- Class of Protection
- IP 20
- Fail Safe Fail Secure
- Field selectable fail safe/fail secure
- Certified
- No
- Door Material
- Wood Glass
- Door Type
- Swinging Sliding
- Installation Point
- Side,Front
- Handing
- Non-handed
- Preload Capable
- No
- Static Strength (lbs)
- 200
- Tamper Resistant
- No
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
