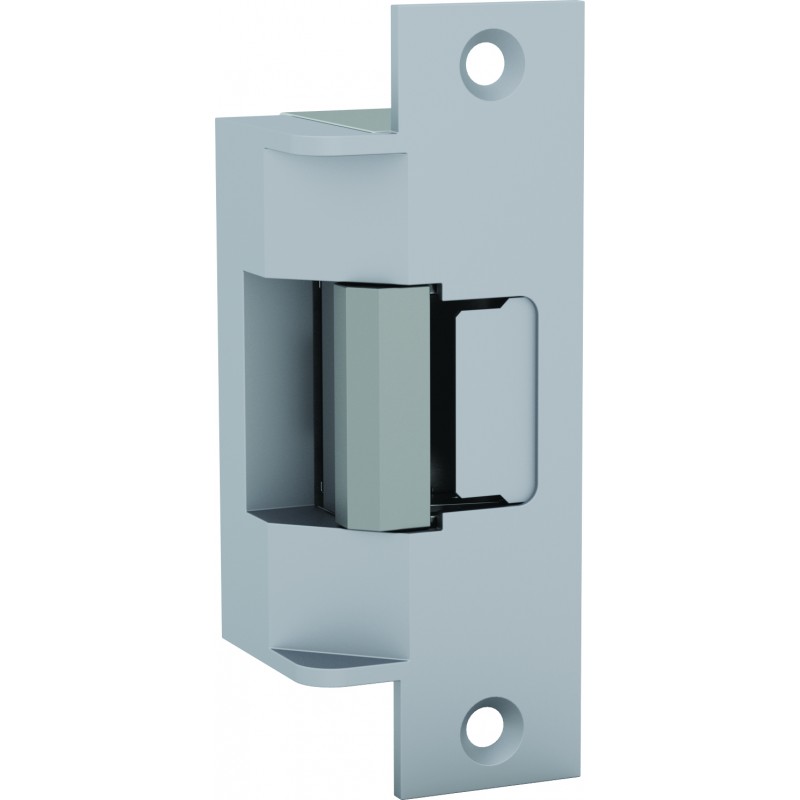

HES 7501 Electric Strike
$513.60
- Model:
-
7501
-
Item normally ships out within 1-2 Weeks (excluding transit time).
If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: HES 7501 Electric Strike
The 7501 series electric strike is ideal for fire rated applications with preload conditions which may be caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind. The heavy duty stainless steel construction provides the strength and durability required to accommodate fire-rated latchbolts up to 3/4" throw.
Features
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Dual voltage 12 or 24 VDC/VAC
- Endurance 500,000 cycles
- Field selectable fail safe/fail secure
- Accommodates preload (fail secure only)
- Keeper shims for horizontal adjustment
- Non-handed
- Internally mounted solenoid
- Strike body depth 1-11/16"
- 7501 Plug-in connector
- Trim enhancer
Specifications
- Adjustability
- Horizontal
- Surface Mounting
- Cutting required
- Frame Material
- Metal Wood
- Shim Type
- Field Adjustable
- Latchbolt Accommodation
- Up to 3/4"
- Voltage
- 12/24
- Monitoring Installation
- Factory Configured
- Monitoring Options
- Latchbolt Monitoring
- Endurance (cycles)
- 1,000,000
- Dynamic Strength (ft-lbs)
- 70
- Tamper Resistant
- Yes
- Fail Safe Fail Secure
- Field selectable fail safe/fail secure
- Grade
- Grade 1
- Warranty
- SecuriCare five-year, no fault, no questions asked warranty
- Lock Type
- Cylindrical Lock
- Strike Body Depth (in)
- 1.6875
- Strike Body Height (in)
- 4.87
- Strike Base Width (in)
- NA
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
Electric strikes can be installed in a wide range of swinging door applications.
Consider these factors to help determine the right electric strike for your project.
Assess the type of frame and health of the opening
- Material: hollow metal, aluminum or wood?
Adams Rite offers electric strikes for aluminum, hollow metal or wood doors. Please see the Adams Rite catalog to order the compatible model for your door application. - Type: hollow or concrete-filled? Concrete-filled may require additional tools. Consider using no-cut electric strikes.
- Health of door and frame: can frame or door irregularities be fixed prior to electric strike installation?
Determine if door assembly has special requirements
- Fire-rated Assembly (NFPA 80 Fire Doors)
- Windstorm Resistant (tested to sustain winds up to 150 mph)
- Outdoor Rated (UL 1034)
- Preload Capable
Identify and test existing door hardware
- Existing locking hardware determines the compatible electric strike and overall function of the opening
Common Accessory
Reduces initial voltage in timed or fail safe operations by 25% to extend the life of the electric strike.
Addition of Smart Pac to any HES electric strike extends the 5-year no-fault warranty to a 10-year no-fault warranty.
|
Cylindrical with 1/2", 5/8", 3/4" Latchbolt |
||
| HES 1600, 1006, 1500 |
 Fire Rated |
 Windstorm Resistant |
 Outdoor Rated |
| HES 5000 |
Outdoor Rated |
||
| HES 5200 | |||
| HES 7501 | Fire Rated |
 Preload |
up to 15 lbs |
| HES 8000 | Outdoor Rated |
no-cut | |
| HES 8300 | Fire Rated |
Outdoor Rated |
|
| Adams Rite 7100 Series | |||
| Adams Rite Ultraline® 7400 Series | Preload |
up to 25 lbs | |
 |
Mortise Lockset without a Deadbolt up to 3/4" Throw Latchbolt |
||||||
| HES 1600, 1006, 1500 | Fire Rated |
Windstorm Resistant |
Outdoor Rated |
HES 8500 | Fire Rated |
Outdoor Rated |
no-cut |
| Adams Rite 7160 | |||||||
 |
Mortise Lockset with a 1" Deadbolt | ||||||
| HES 1600, 1006 | Fire Rated |
Windstorm Resistant |
Outdoor Rated |
||||
 |
Rim Exit Devices up to 1/2" Throw Latchbolt | ||||
| HES 9400 | Outdoor Rated |
no-cut surface mounted |
Adams Rite Ultraline® 74R2 | Preload |
up to 25 lbs |
|
Rim Exit Devices up to 3/4" Pullman Latchbolt | ||||
| HES 7000 | Preload |
up to 15 lbs | |||
| HES 9500 | Fire Rated |
Outdoor Rated |
no-cut surface mounted |
||
| HES 9600 | Windstorm Resistant |
Outdoor Rated |
no-cut surface mounted |
||
| Adams Rite Ultraline® 74R1 | Preload |
up to 25 lbs | |||
 |
Rim Exit Devices with Corbin Russwin SecureBolt® or Yale SquareBolt® |
||||
| HES 9700 | Fire Rated |
Windstorm Resistant |
Outdoor Rated |
no-cut surface mounted |
|
