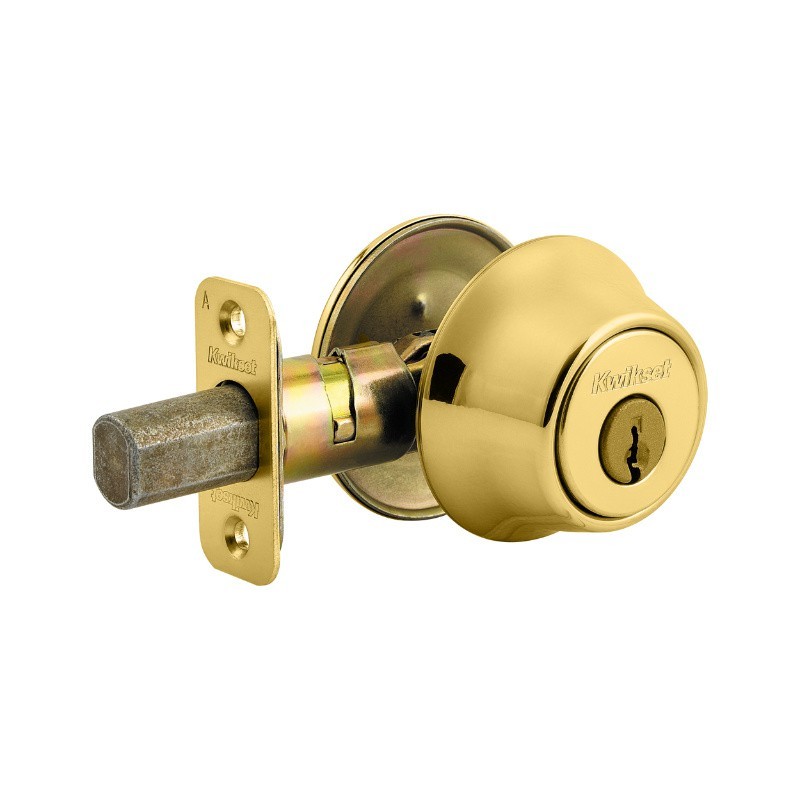

Kwikset 660 Keyed One Side Deadbolt

$20.32

Model:: 660

Item is normally in stock and ships out within 1-2 Business days (excluding transit time).

If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Function

Request for Quote

Email us your RFQ sales@FBIsecurity.com
or call us for pricing 800-523-2924
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Kwikset 660 Keyed One Side Deadbolt

The 660 Single Cylinder is Kwikset's top selling deadbolt, and for good reason! It's durable, reliable, and easy to install. It comes in a variety of finishes sure to match any of Kwikset's levers and knobs.

Downloads

Performance Features

Features a fully adjustable latch to fit all standard door preparations
ANSI/BHMA Grade 3 Security
Lifetime mechanical and finish warranty
Cylinders feature a stainless steel side locking bar, racks and pins for increased strength and security
Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin & tumbler locks.

Technical Specifications

ADA: Interior turn meets sec. 4.13.9 ADA requirements
ANSI Certification: A156.2
Backset: Adjustable 2⅜" or 2¾"
BHMA Certification: Grade 3
Bolt: 1" throw
Cylinder: 5 pin Standard or SmartKey
Cross Bore: 2⅛"
Door Thickness: 1⅜" to 1¾"
Edge Bore: 1"
Functions Available: Single Cylinder, Double Cylinder
Latch Face: 1" × 2¼"
Latch Type: Round Corner, Square Corner and Drive-In
Panic Proof: No
Product Class: Residential
Projection, exterior: 1-1⁄16"
Projection, interior: 27⁄32"
Rose Diameter, exterior: 2-7⁄16"
Rose Diameter, interior: 2½"
Thumbturn Length: 1¾"

()

()
