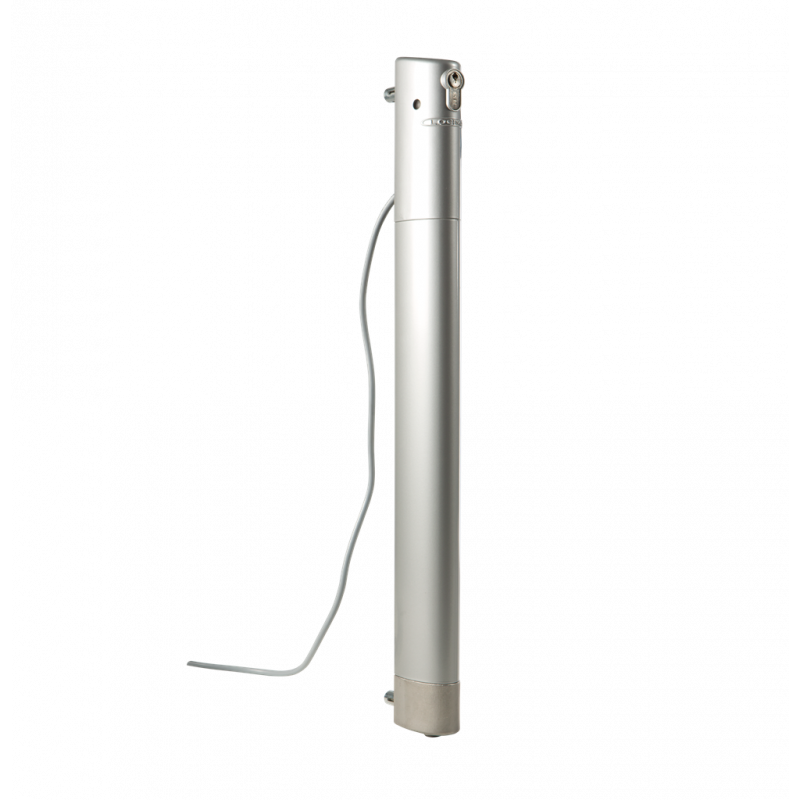

Locinox ELECTRADROP Motorized Electrical Drop Bolt
$676.61
As low as:
- Model:
-
ELECTRADROP
Item is normally in stock and ships out within 1-2 Business days (excluding transit time).If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote - Vandal-proof, powder coated aluminium housing
- To be connected to the warning light on automated gates (min 3 sec prewarning signal) or directly on the gate automation
- Mechanical release possible (by key) in case of emergency
- Throw: 115 mm
- Drop bolt diameter: 20 mm
- For gate profiles: 40 mm or more
- 5 m cable included
- Included: 3012-37-STD cylinder
- Automatic detection and memorisation of the continuous or pulse signal
- The integrated obstacle detection will automatically stop the drop bolt movement in case of overpressure to avoid injuries.
- Holding force: >1000 kg
- Power consumption: Normal: 25 W / Peak: 72W / Standby: 0,2 W
- To connect to a Locinox PowerStone 60W
- IP66 rated
Details: Locinox ELECTRADROP Motorized Electrical Drop Bolt
Electric 24V drop bolt with 115 mm throw for safe locking of automated swing gates. By securing your gate with an Electradrop you disburden the electric gate motors.Electric 24 V dropbolt with 4-1/2" throw for safe locking of automated gates. By securing your gate with a dropbolt you disburden the electric gate motors.
