Marks USA Survivor Series 95 Line Grade 1 Cylindrical Leverset (Commercial Cylinder)
$56.78
As low as:
- Model:
-
95-42301511
Item normally ships out within 2-4 Weeks (excluding transit time).
Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Marks USA Survivor Series 95 Line Grade 1 Cylindrical Leverset (Commercial Cylinder)

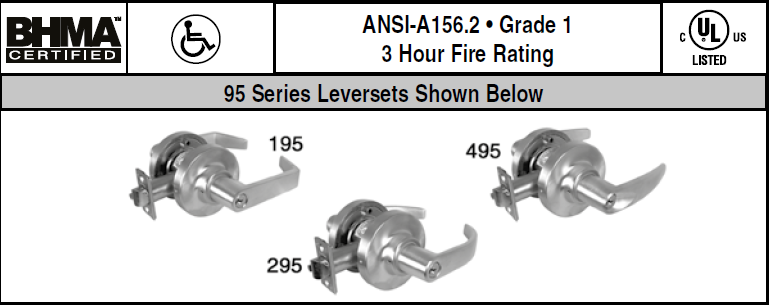

Marks USA Survivor Series locksets are the most durable cylindrical lever locksets. The series is offered in four lever styles, conventional cylinder, IC core for "Best" size cores and Schlage® as well as others. The Survivor Series locksets are backed by Marks lifetime mechanical warranty. All functions are available in six standard finishes, are UL Listed for 3-hour fire rating, and satisfy ADA requirements.
Standard Features
- Backset: 2-3/4"; 2-3/8", 3-3/4", & 5" Optional
- Levers: Solid cast Zamac; with 1/2" return (Except 395, 495, 375 & 475)
- Door thickness: 1-5/8" - 1-7/8"; 1-3/8" doors use K1904 spacer
- Cylinder: MARKS "C" keyway, 6 pin with 2 keys
- UL Listed, 3 hour fire rated
Specification
- Latch
- #1834, Front: 1-1/8" × 2-1/4"; Throw: 9/16; Stainless steel nose
- Roses
- Thru-bolted, 3-7/16" dia., spring loaded 2-#10 thru-bolts
- Strike
- #1135, 4-7/8" ASA curved lip strike
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
