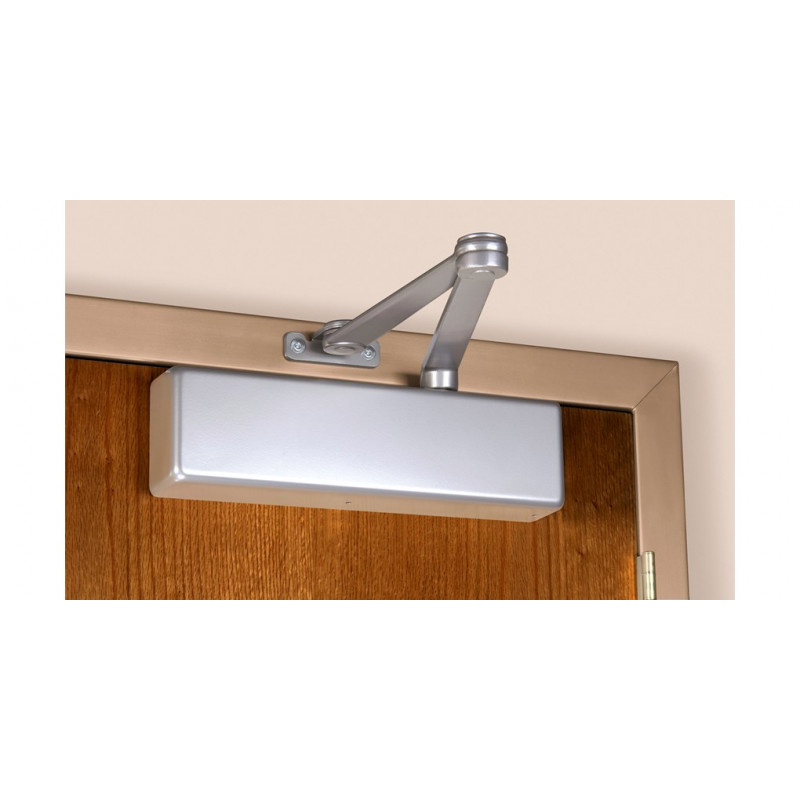

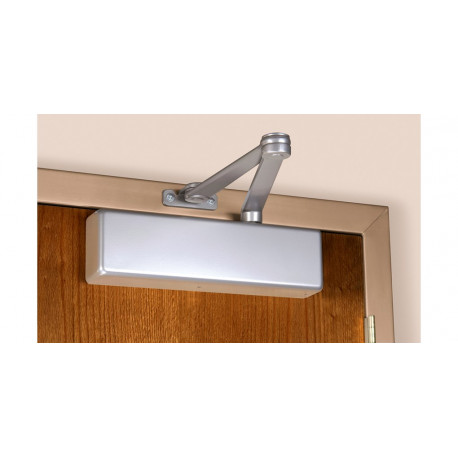

Norton 7570 High Security Door Closer
$932.25
As low as:
- Model:
-
7570-42322151Item normally ships out within 4-6 Weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Norton 7570 High Security Door Closer
Details
The 7570 Series high security door closer is designed to withstand maximum abuse, deter tampering, and help protect doors, walls, and hardware. Available with a large number of arm and track assemblies, the 7570 Series is capable of providing reliable performance for a wide variety of openings.
Features
- Cast aluminum body
- Adjustable, heavy-duty spring sizes 1-6
- Larger 1-1/2" (38mm) diameter piston
- Security arms - joints feature permanent, orbital riveted elbow and arm show/soffit plate joints which prevent disassembly
- Torx® drive machine screws with security pin standard
- Non-handed
- Interior or exterior doors
- Adjustable backcheck cushioning and positioning
- Heavy-duty arms available
- Slide track - push or pull side mounting
- Fasteners: sex nuts, SDST
- NorGlide® fluid
- Closer footprint: 2-3/8" x 6-3/4"
Benefits
- Designed to withstand maximum abuse, deter tampering and help protect doors, walls & hardware
- Constructed with robust materials and internal components
- Staking limits ability to accidentally back out the valve while adjusting closer
- Arm configurations meet broad range of applications
- Proprietary lubricate delivers optimal performance and efficiency
Certificates
- ANSI/BHMA A117.1
- ANSI/BHMA A156.4, Grade 1
- Americans with Disabilities Act (ADA) Compliant
-
Buy American Act*
*Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.
- MEA - City of New York Approved
- UL 10C Positive Pressure up to 3 hours
- UL-cUL Listed
Specifications
| Closer Type | Surface |
| Maximum Door Weight | 250 lbs |
| Traffic Rating | High Traffic |
| Warranty | 30-year limited warranty |
Downloads
- Catalog
- Brochure
- Norton Rixson 7570 Series Door Closer 7570, 7770 Regular Rigid Arm, Non-Hold Open Installation Instructions
- Norton Rixson 7570 Series Security Door Closer, 7570, 7770 Regular Rigid Arm, Non-Hold Open Installation Instructions
- Norton Rixson 7570 Series Security Door Closer, PR7570, PR7770, Parallel Rigid Arm, Non-Hold Open or Hold Open Installation Instructions
- Norton Rixson 7570 Series Security Door Closer, CLP7570, CLP7700, CloserPlus, Non-Hold Open or Hold Open Installation Instructions
- Norton Rixson 7570 Series Door Closer, CLP7570, CLP7770, CloserPlus Arm, Non-Hold Open or Hold Open Installation Instructions
- Norton Rixson 7570 Series Surface Closer Pull and Push Side Security Door Closer or Door Closer with Security Arm Only Slide Track Installation Instructions
- Norton Rixson 7500 Series Door Closer, P7570ST, P7770ST, Security Door Closer with Security Slide Track, Non-Hold Open, with or without 7786 Drop Plate, for use on doors 4-1/2 - 5" Wide Butt Hinges Template
- Norton Rixson 7500 Series Door Closer, CLP7570(T), CPS7570(T), CLP7770(T), CPS7770(T), Security Closers, CloserPlus or CloserPlus Spring, Non-Hold Open or Hold Open, with or without 7778 Drop Plate Template
- Norton Rixson 7500 Series Door Closer, PR7570, PR7770, Parallel Rigid Security Closer, Non-Hold Open with or without 7788 Drop Plate Template
- Norton Rixson 7500 Series Door Closer, 7570ST, 7770ST, Security Door Closer with Security Slide Track, Hinge Side with or without 7786 Drop Plate, Non-Hold Open for 4-1/2 - 5" Wide Template
- Standard Door Closer Hole Pattern Chart-ANSIBHMA A156.4
- Door Closer Hole Pattern Chart
