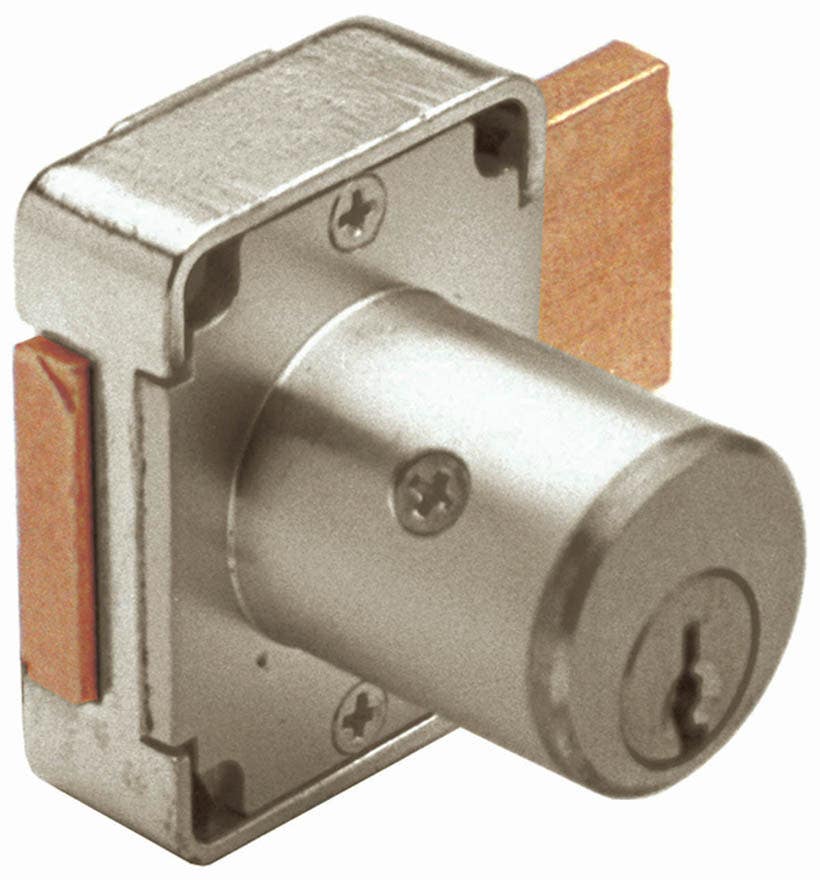

Olympus 500M Door Deadbolt Lock (MRI Series)
$43.87
As low as:
- Model:
-
500M
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Olympus 500M Door Deadbolt Lock (MRI Series)
General Features
- R Series: CCL R1 keyway
- 500M MRI Series deadbolt door lock
- All non-ferrous (non-magnetic) materials and parts
- Suitable for use in Magnetic Resonance Imaging (MRI) suites where all components must have non-magnetic properties
- Includes keys (2 per lock)
- Easily rekeyable via set screw cylinder release mechanism
- Solid brass pin tumbler cylinder drilled for 5 pins
- ANSI/BHMA Grade 1 (E07121)
- Barrel lengths: 15/16" or 1-3/8" specify barrel length when ordering
- Barrel diameter: 7/8"
- Standard function: locks are non-handed with key removable in the locked and unlocked position.
- 26D, US4 or 10B finish (note: 10B not available on 1-3/8")
- Includes 56-1 bar strike
- Packed 10 per box
- US Patent Nos: 4,899,563; 4,920,774
Keying
- R Series: CCL R1 keyway
- KD/KA/MK - 5 pin standard
- KA# 4T21579, 4T37526
- Master keyed - 6 pin available
- Includes keys (2 per lock)
- Use R1 Pin Kit for rekeying
- 5-pin copper plated keyblank = KBR-5B
- (equivalent to CO106,1003A)
Available separately
- 15-1-35 extended bolt increases the overall bolt length by 1-1/2" (3/4" for both left- or right-hand bolt projections). Specify -LB option when ordering.
- Spacer WP21, WP22, WP23
- ETS2-125 Through-bolt trim plate 1/8" thickness
- ETS2-250 Through-bolt trim plate 1/4" thickness
- ETS2-PL Through-bolt trim pull
- ETST2 Through-bolt trim spacer template
Downloads
Standard Function
Key removable in the locked or unlocked position. Locks ship with standard function unless key retaining is specified at time of order.
Key Retaining
The key cannot be removed from the lock while in the "unlocked" position. Key-retaining function is generally used in instances where cabinets or drawers should not be left unlocked.
