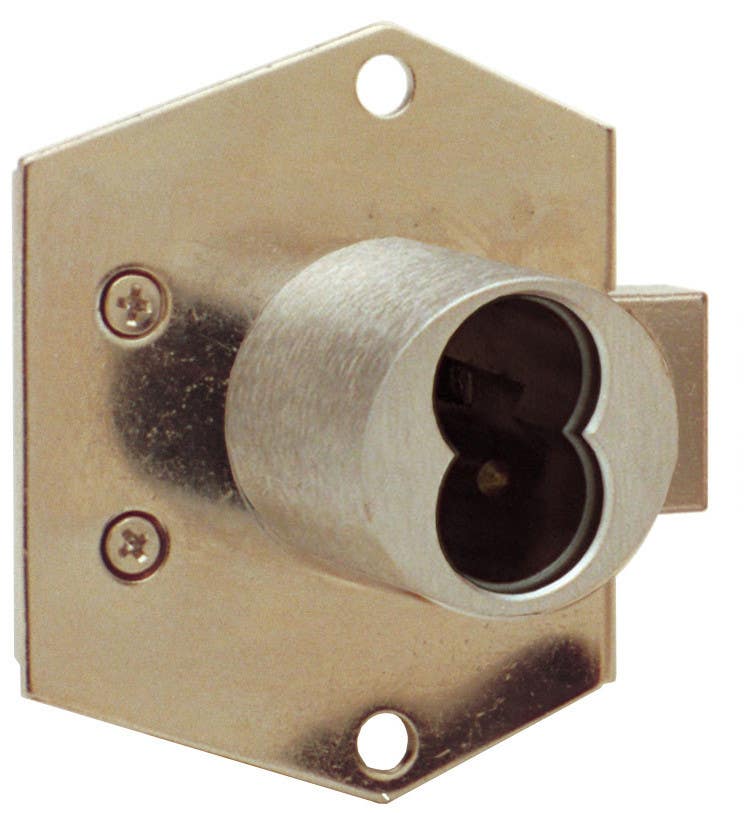

Olympus 725RSL Enclosure Lock for NEMA Traffic Control Boxes
$47.13
- Model:
-
725RSL
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Olympus 725RSL Enclosure Lock for NEMA Traffic Control Boxes
General Feature
- Cabinet lock, Rim - surface mount
- Square latch bolt locking mechanism / solid brass cylinder housing
- Accepts Best, Arrow, Falcon or equivalent IC cores
- Accepts 6 or 7 pin cores
- Barrel diameter: 1-1/8"
- Barrel length 1-1/16"
- 725RSL (with solid brass cyinder housing) available in 26D or US4 finish only
- Retrofits Best 5L series (square latch option) cabinet locks
Available Configurations
- 725RSL (square latch) available in 3 handings
- Left-hand door = 725RSL-LH
- Right-hand door = 725RSL-RH
- Drawer-vertical = 725RSL-VH
- For use on NEMA traffic control enclosures
Includes
- 1 ea. 725-1 spacer for 6 pin cores
- 1 ea. 725-PA plastic actuator to functionally test lock without core
- 1 ea. 725-SP-RL solid lipped strike (stamped brass)
Downloads
Handed locks must be ordered either LH, RH, VH or IH (see figure at left).
Non-handed locks can be ordered as either door or drawer. Door locks will work in both LH or RH applications and drawer locks will work for both vertical or inverted function.
Cabinet Doors
Left-hand (LH)
Hinged on left
Right-hand (LH)
Hinged on right
Drawers
Vertical-hand (VH)
Bolt locks up
Inverted-hand (IH)
Bolt locks down
