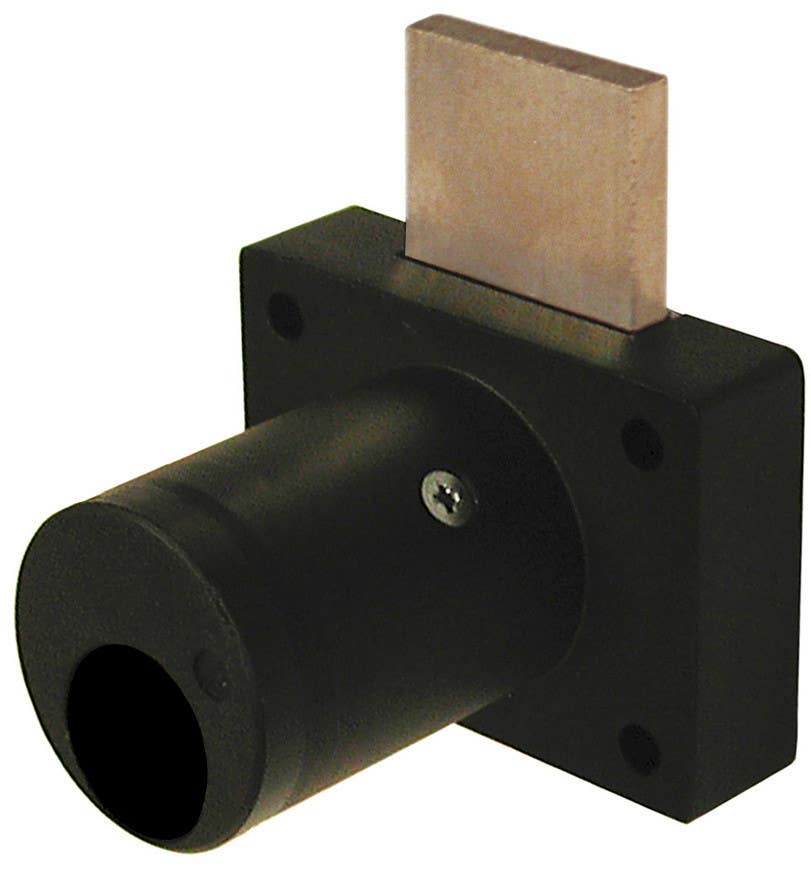

Olympus 800LC Drawer Deadbolt Lock
$46.84
As low as:
- Model:
-
800LC
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Olympus 800LC Drawer Deadbolt Lock
Features
- Cabinet lock - deadbolt drawer lock
- Easily rekeyable via cylinder release mechanism
- Will accept other manufacturer's Schlage compatible deadbolt cylinders
- ANSI/BHMA No. E07041 (Grade 1)
- 800LCA barrel length: 1-1/8"
- 800LCM barrel length: 1-3/8"
- Barrel diameter: 1-1/8"
- Bolt projection: 15/16"
- 26D, US3 or 10B finish
- Packed 10 per box
- US Patent Nos: 4,899,563; 4,920,774
Available Separately
- 10-052 slotted strike
- Plastic spacers - 10-348, 10-349, 10-350
- ETS1-125 through-bolt trim plate 1/8" thickness
- ETS1-250 through-bolt trim plate 1/4" thickness
- ETS1-PL through-bolt trim pull
- ETS1B through-bolt trim spacer
- ETST1 through-bolt trim spacer template
- TR78 trim ring
- 78-KABA-CONV conversion kit for KABA-Peaks cylinders
Keying
- N/A - this lock is sold less cylinder
- See our 78-201 Series Schlage C keyway compatible cylinders
- Will accept other manufacturer's Schlage-compatible deadbolt or key-in-knob cylinders
- Accepts Assa cylinder #65611 (www.assalock.com)
- Accepts Medeco (www.medeco.com) cylinders:
- #20-009S4 - ORIGINAL
- #20-008S4 - ORIGINAL
- #20W009S4 - BIAXIAL
- #20W008S4 - BIAXIAL
- #20K009S4 - KEYMARK
- #20W200S1 - KEY-RETAINING ONLY
Includes
- 800LCA (1-1/8" barrel length) lock includes:
- 2 ea. 10-350 plastic spacers
- 1 ea. 10-054 1/4" plastic bar strike
- 1 ea. 10-055 1/2" plastic bar strike
- 800LCM (1-3/8" barrel length) lock includes:
- 1 ea. 10-054 1/4" plastic bar strike
