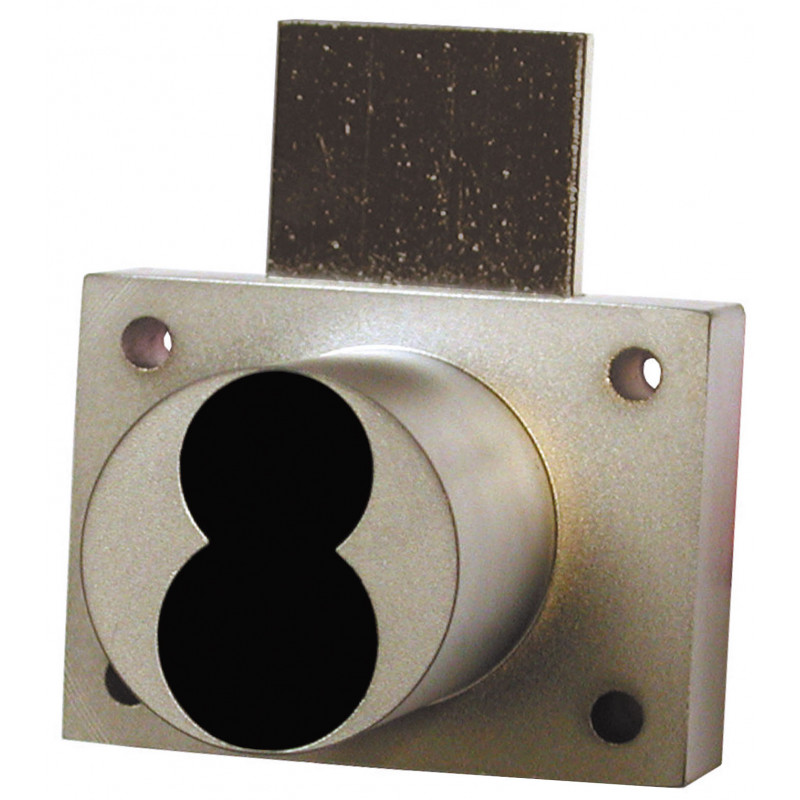

Olympus 888 Schlage IC Cabinet Deadbolt Drawer Lock
$62.75
- Model:
-
888
-
"Core Not Included"
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Olympus 888 Schlage IC Cabinet Deadbolt Drawer Lock
Features
- Cabinet lock - deadbolt drawer lock
- Accepts Schlage standard or Primus/Everest large format interchangeable core cylinders
- Also available with key-retaining function
- ANSI/BHMA Grade 1 (E07041)
- Barrel diameter: 1-1/8"
- Barrel length 1-7/16"
- 26D, US3 or 10B finish(see finish chart)
- Packed 10 per box
Available Separately
- 10-052 slotted strike
- Plastic spacers - 10-348, 10-349, 10-350
- ETS1-125 through-bolt trim plate 1/8" thickness
- ETS1-250 through-bolt trim plate 1/4" thickness
- ETS1-PL through-bolt trim pull
- ETS1B through-bolt trim spacer
- ETST1 through-bolt trim spacer template
- TR78 trim ring
Cores for Locks
- N/A - this lock is sold less cylinder
- Will accept Schlage standard or Primus/Everest large format interchangeable core cylinders. For more information on Schlage IC core cylinders visit www.schlage.com.
Includes
- 3 ea. 10-350 plastic spacers
- 1 ea. 10-054 1/4" plastic bar strike
- 1 ea. 10-055 1/2" plastic bar strike
- 1 ea. 7788-PA-D plastic actuator to functionally test lock without core
