Olympus 997 Door Latch Lock, Satin Chrome

$49.92

Model:: 997

Item is normally in stock and ships out within 2-3 Business days (excluding transit time).

If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@FBIsecurity.com
or call us for pricing 800-523-2924
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Olympus 997 Door Latch Lock, Satin Chrome

Features

Cabinet lock - door latch lock
Field reversible into all 4 handings
Easily rekeyable via set screw cylinder release mechanism
Pin tumbler cylinder drilled for 5 pins
Barrel lengths: 1" or 1-3/8" specify barrel length when ordering
Barrel diameter: 7/8"
Locks are handed at the factory, specify right-hand or left-hand when ordering
26D or US4 finish
Includes 999-STRIKE matching strike (stamped brass) with alignment mark for easy installation
Packed 10 per box
US Patent: 4,899,563; 7,874,189 B2

Keying

CCL R1 keyway
KD/KA/MK - 5 pin standard
KA# 4T21579, 4T37526
Master keyed - 5 pin standard, 6 pin available
Use R1 Pin Kit for rekeying
5-pin keyblank = KBR-5-NP(equivalent to CO106,1003A)
6-pin keyblank = KBR-6-NP(equivalent to L1003A)

Downloads

Installation Instructions

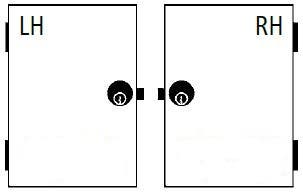

Handed locks must be ordered either LH, RH, VH or IH (see figure at left).

Non-handed locks can be ordered as either door or drawer. Door locks will work in both LH or RH applications and drawer locks will work for both vertical or inverted function.

Cabinet Doors

Left-hand (LH)
Hinged on left

Right-hand (LH)
Hinged on right

Drawers

Vertical-hand (VH)
Bolt locks up

Inverted-hand (IH)
Bolt locks down
