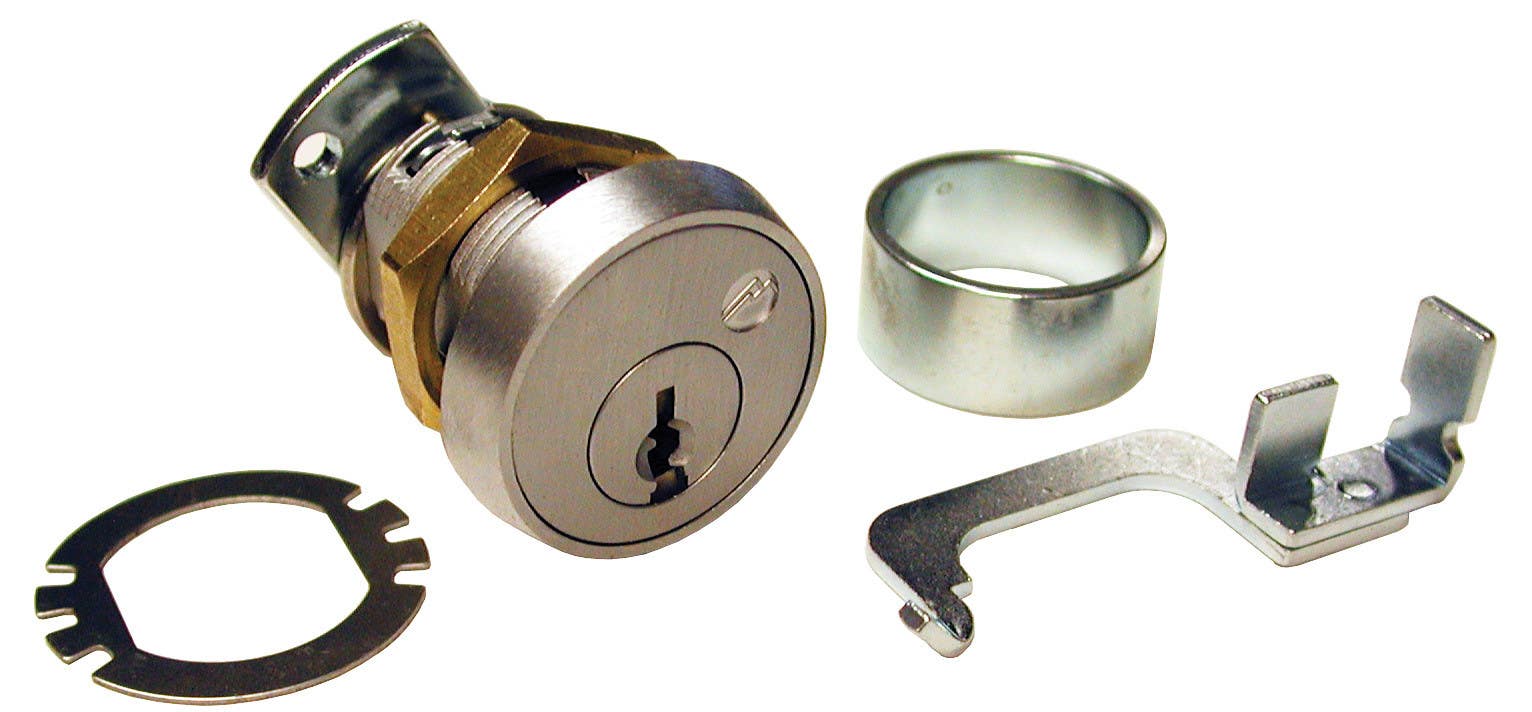

Olympus FC10 File Cabinet Lock Kit

$28.35

Model:: FC10

Item is normally in stock and ships out within 2-3 Business days (excluding transit time).

If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@FBIsecurity.com
or call us for pricing 800-523-2924
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Olympus FC10 File Cabinet Lock Kit

General Features

Cabinet lock - for metal file cabinets
Easily rekeyable via working top slide and patented retainer staple cylinder release mechanism
Directly replaces HON F24/F28 vertical file cabinet lock
For use in HON vertical file cabinets produced after 1988. Also works with HON 1000 Series vertical file cabinets
Pin tumbler, 5-pin cylinder
Barrel diameter: 3/4"
Material: Zinc die cast
Includes: 2 keys per lock and all parts necessary for complete replacement of lock
26D finish
Packed 10 per box
U.S. Patent Nos: 5,038,589; 5,737,950

Keying

National Cabinet Lock D4291(4-pin) or D4292 (5-pin) keyway
KD/KA - 4 pin standard
KA# 101, 103, 107, 915
Master keyed - 5 pin standard
Use N1 Pin Kit for rekeying
4-pin keyblank = KBN-4-NP (equivalent to NA14, 1069L)
5-pin keyblank = KBN-5-NP (equivalent to NA12, 1069LA)

Available Separately (see below)

T37-NKIT number kit for T37 locks includes number ring and trim collar
T37DC-NP replacement number rings

FC26-AR adapter ring for HON F26 style

Allows the FC10 file cabinet lock to be used in HON F26 style applications
Available separately as an add-on to the FC10
