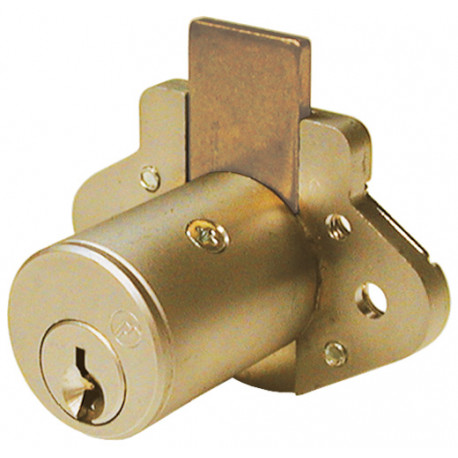

Olympus N078 Diamond Back Drawer Lock

$23.76

Model:: N078

Item is normally in stock and ships out within 2-3 Business days (excluding transit time).

If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Keying

Request for Quote

Email us your RFQ sales@FBIsecurity.com
or call us for pricing 800-523-2924
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Olympus N078 Diamond Back Drawer Lock

General Features

Cabinet lock - furniture drawer lock
Easily rekeyable set screw cylinder release mechanism
Solid brass pin tumbler cylinder drilled for 5 pins
Barrel lengths: 1-1/8" or 1-3/8" (Specify barrel length when ordering)
Barrel diameter: 7/8"
26D or US4 finish
Packed 10 per box
US Patent Nos: 4,899,563; 4,920,774

Keying

National Cabinet Lock D4291(4-pin) or D4292 (5-pin) keyway
KD/KA - 4 pin standard
KA# 101, 103, 107, 915
Master keyed - 5 pin standard
Use N1 Pin Kit for rekeying
4-pin keyblank = KBN-4-NP (equivalent to NA14, 1069L)
5-pin keyblank = KBN-5-NP (equivalent to NA12, 1069LA)

Available Separately

Spacer WP21, WP22, WP23
Strike 07S, 56-1, 12-1, 12-2
Reinforcing trim spacer ETS3
Reinforcing trim spacer template ETST3
Trim ring TR1256
Outbent drawer bolt 078-LB1-DW (available separately)

Downloads

Olympus Lock,Inc Warranty
