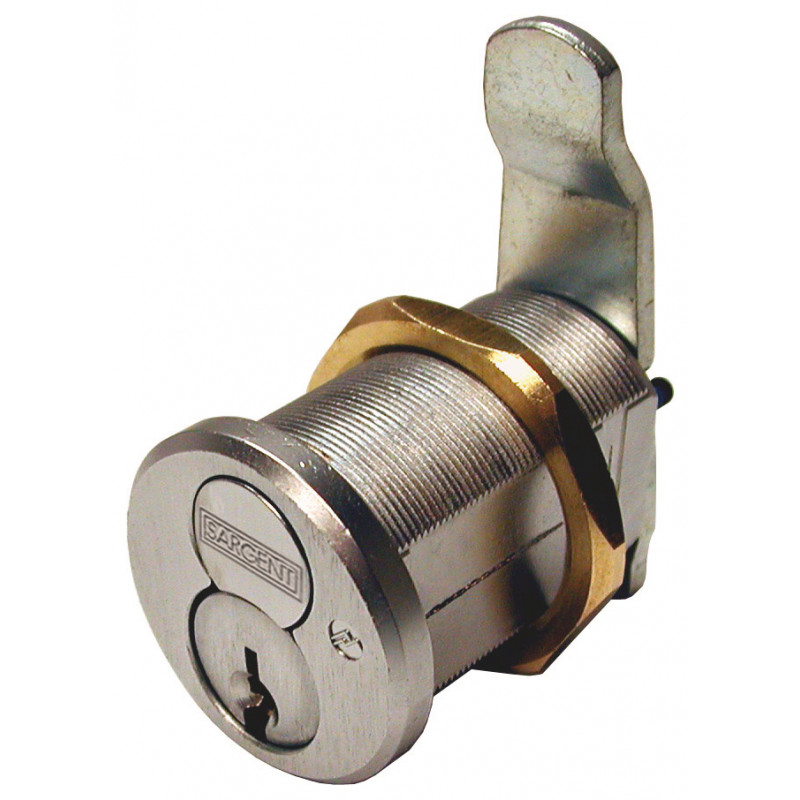

Olympus SA54 Sargent IC Cam Lock

$45.97

Model:: SA54LM/DM; "Core Not Included"

Item is normally in stock and ships out within 2-3 Business days (excluding transit time).

If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@FBIsecurity.com
or call us for pricing 800-523-2924
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Olympus SA54 Sargent IC Cam Lock

Specification

Cylinder diameter: 1-1/8"
Across flats: 7/8"
Max. material thickness: 1-1/8"
Min. material thickness: 0.08"
Functions: Includes parts for key-retaining or non- key-retaining function
Body: Zinc die cast
Finish: 26D
Packaged: Packed 10 per box

Cylinder Information

Cylinder: Not included
Accepts: Sargent 6300 Series interchangeable core cylinders
Note: Use of Sargent "Degree" interchangeable cores requires purchase of alternate SA54-PD-DG prong driver

Included Accessories

Plastic actuator to operate lock without core
720-PL3 anti-rotation plate
720-3-1 short inverted cam
720-3-2 long vertical cam
720-CDLM lost motion cam shifter
720-CDDM key retaining door cam shifter
720-KR key retaining drawer cam shifter
Prong driver for Sargent 6300 series
interchangeable cores

Optional Accessories

Optional cams: 7-3-2, 7-3-3, 7-3-4, 7-3-5
Trim collars: TR200 Series
Switch accessory pack: SW-1
CL-MP-118: Double-D metal punch (page 57)
Prong Driver: SA54-PD-DG for use with Sargent "Degree" interchangeable cores

Downloads

Product Data Sheet

Installation Instructions

Olympus Lock,Inc Warranty
