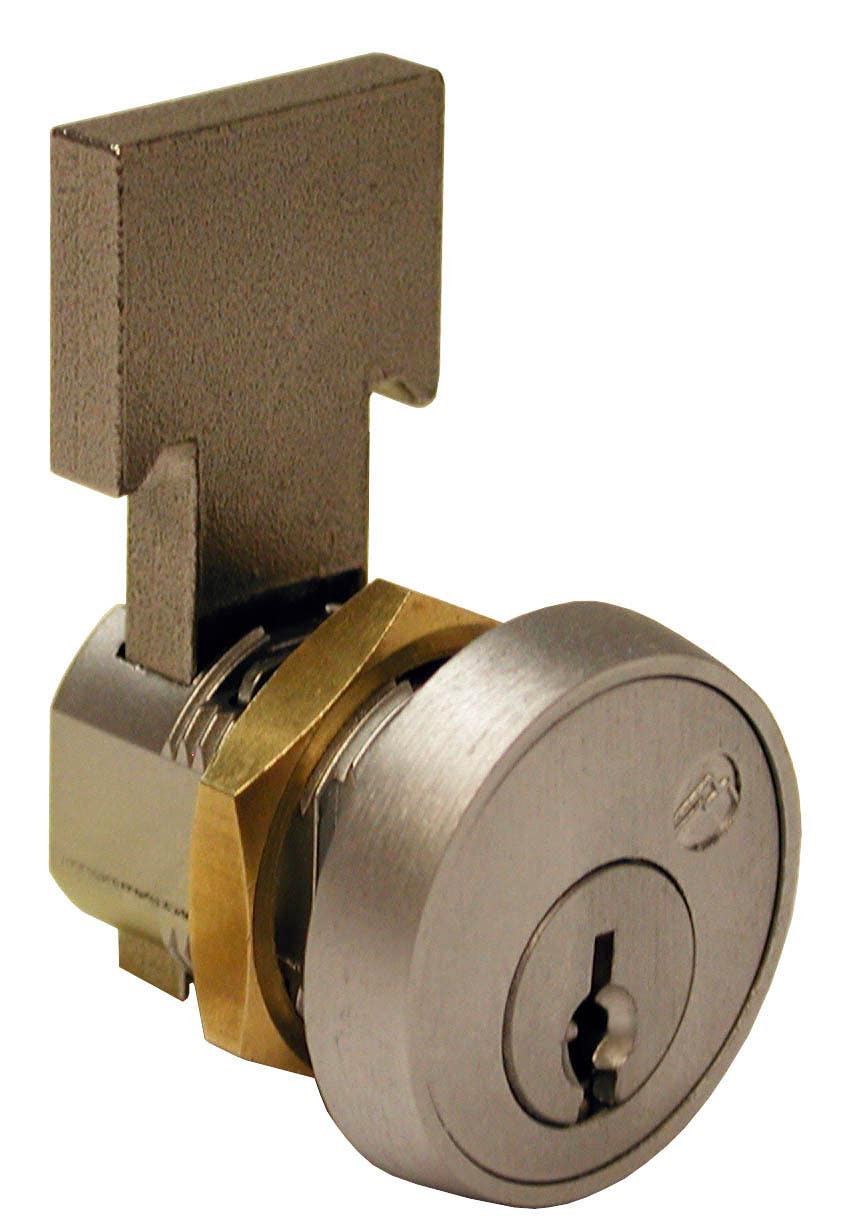

Olympus T37 T-Bolt Lock for N Series
$6.89
- Model:
-
T37
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Olympus T37 T-Bolt Lock for N Series
General Features
- Easily rekeyable via working top slide and retainer staple cylinder release mechanism
- Directly replaces National C8137 T-bolt lock
- Pin tumbler, 4-pin cylinder
- ANSI/BHMA No. E07051
- For 1/4" thick metal drawers
- Barrel diameter: 3/4"
- Includes: insertable t-bolt and brass mounting nut
- Stainless steel bolt resists breakage
- 26D finish
- Packed 10 per box
- US Patent No: 5,038,589
Available Separately
- T37-RC spring mounted retaining clip for 0" to 11/64" material thickness
- T37-2 long bolt, can be cut to fit a variety of applications
- T37-3 short "Chicago-style" bolt for 25/32" backset
- T37-NKIT number kit for T37 locks includes number ring and trim collar
- T37DC-NP replacement number rings
Keying
- National Cabinet Lock D4291(4-pin) keyway
- KA/KD/MK - 4 pin standard
- KA# 101, 103, 107, 915 and 001 through 030
- NEW! KA# 51001, 51002, 51003, 51004, 51005, 51006, 51007, 51008, 51009, 51010
- Use N1 Pin Kit for rekeying
- 4-pin keyblank = KBN-4-NP (equivalent to NA14, 1069L)
