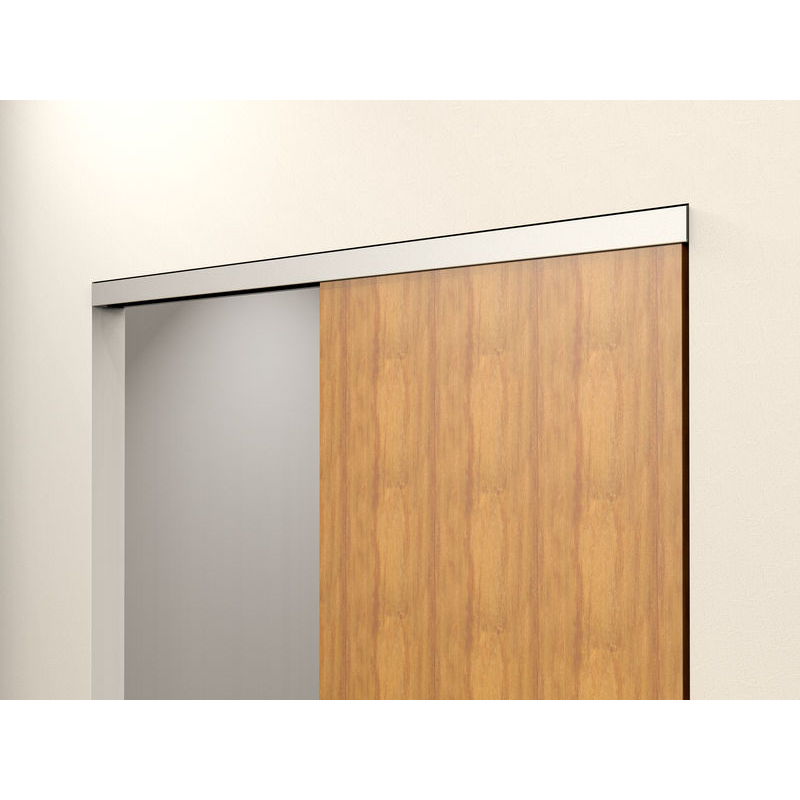

Pemko H180A Sliding Door Kit, 180lb/Panel, Finish-Clear Anodized Aluminum
$168.44
As low as:
- Model:
-
H180A
-
Order $500 worth of Pemko Products and get 30% OFF!
Item normally ships out within 2-4 Weeks (excluding transit time).
Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Pemko H180A Sliding Door Kit, 180lb/Panel, Finish-Clear Anodized Aluminum
The H180A Hardware Kit is designed for single or bi-parting sliding panels up to 200 lbs. and is supplied with either a 72" or 96" aluminum track.
Features
- For single or bi-parting sliding panels up to 180 lbs - Face mount, soffit mount and face/soffit mount with fascia applications
- Optional side wall bracket reduces the amount of wall space needed to mount the track
- Optional Soft Close available for new or retrofit applications
- Zinc alloy ball bearing wheels coated in nylon for smooth operation
- Hanger body is made of nickel plated zinc alloy for durability and long life
- Cerifications: Americans with Disabilities Act (ADA) Compliant
- Kit Components: 1 - 102N White Nylon Mortise Guide, 2 - H222R1 Nickel Plated Zinc Alloy Body Zinc Alloy Wheels Coated in Nylon, 2 - 287R1-KIT Rubber Bumper In-Track Stop, 1 - 280C Clear Anodized Aluminum Track
Specifications
- Base Material
- Aluminum
- Door Material
- Wood
- Hanger Material
- NIckel zinc plated alloy
- Maximum Door Thickness
- 1 3/4"
- Minimum Door Thickness
- 1 3/8"
- Maximum Door Weight
- 180lbs
- Maximum Door Width
- 48"
- Minimum Door Width
- 36"
- Maximum Track Length
- 12'
- Minimum Track Length
- 6'
- Mounting Location
- Side Wall Mount, Overhead Mount
- Mounting Type
- Overhead, Side wall
- Panel Configuration
- Single, Bi-parting
- Wheel Type
- Nylon Coated Zinc Alloy
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
