RCI 9500/9501 Mortise Pin Transfers
$85.68
- Model:
-
950-42213360
-
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: RCI 9500/9501 Mortise Pin Transfers
Standard Features
- Recessed transfers mount on the hinge side of the door/frame
- Current rating 1.5A/24VAC
- Chrome plated pins in white plastic housing
Specifications
- Model
- Mounting 9500Mortise9501Mortise
Door Status Type Ratings Material Finish No -
2-pin contactPin 1.5A/24VAC Nickel-plated
Brass on PlasticWhite Yes -
3-pin contactPin 1.5A/24VAC Nickel-plated
Brass on PlasticWhite NOTE: It is recommended that preparation for wires, etc, for all surface-mounted models be done on-site. Conduits supplied by others.

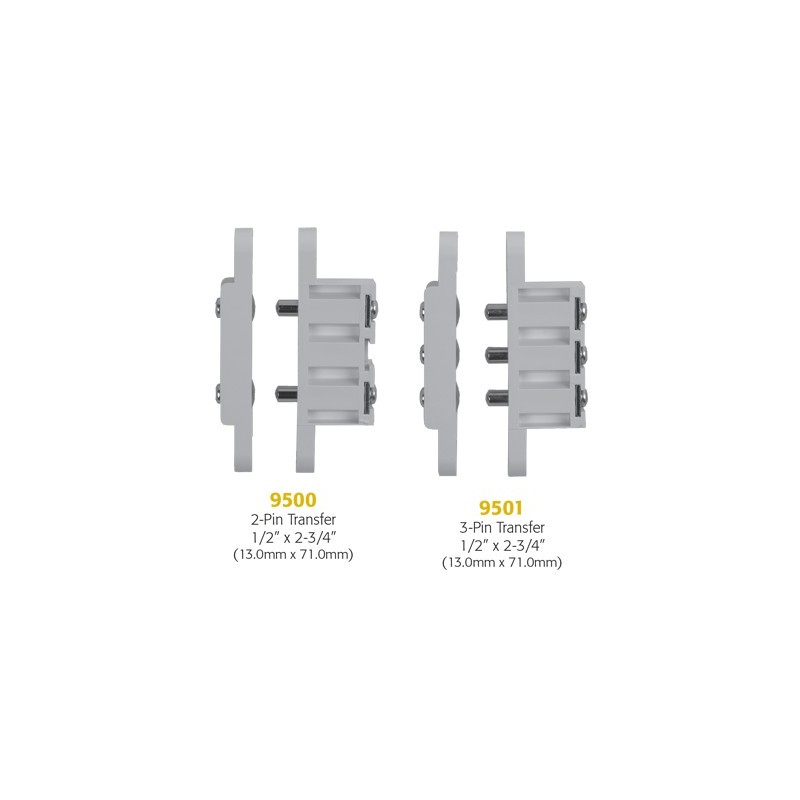

9500 - 2-Pin Transfer Dimensions
½" × 2¾" (13.0mm × 71.0mm)9501 - 3-Pin Transfer Dimensions:
½" × 2¾" (13.0mm × 71.0mm)9500 / 9501 Dimensional Profile
