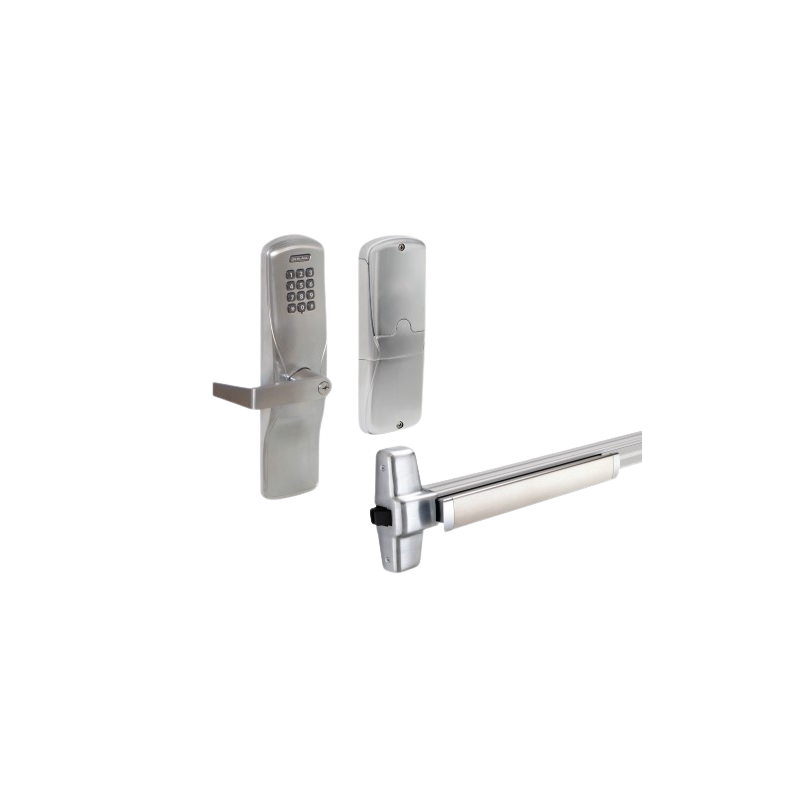

Schlage CO-100-993 Standalone Keypad Programmable Lock - Exit Trim Chassis
$1,036.48
As low as:
- Model:
-
CO-100-993
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Schlage CO-100-993 Standalone Keypad Programmable Lock - Exit Trim Chassis
The CO-100 is a standalone, easy-to-manage, low maintenance lock that uses PIN codes as credentials. User rights are stored on the lock with unique PINs assigned to each user. This minimizes the number of mechanical keys issued, protecting the integrity of a facility's key system. Administrator level users program the CO-100 using its keypad at the door to add or delete user PINs or change preferences or functions at any time.
The CO-100 is ideal for:
- Visitor pass through/common areas
- Vestibules or reception area doors controlled by remote release
- Maintenance areas
- Supply/equipment rooms
- Workout/exclusive use spaces
- Private spaces such as restrooms, nursing, or fitting rooms - anywhere visual occupancy indication is desired
Features & Benefits
Security
- Electronic access control helps minimize key distribution and ensures the integrity of the key system
- Classroom/storeroom, office, and privacy functions available
- Key override is standard. Standard: Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys
- Hardwired remote release push button capability on office function locks
Efficiency
- Manages up to 500 PINs with user rights stored on the lock
- PINs can be issued and revoked quickly at the keypad
- Utilize existing master key system
- Low lifetime cost of ownership
Convenience
- Normal, toggle, pass through, and freeze programming options
- Programmable lighted occupancy indication available on privacy function locks
- Up to 2 years battery life with status indicator for easy maintenance
- Compatible with most major brands of exit devices
Electronic Specifications
Reader options
- Keypad
- Capable of credential verification <1 second
- Up to 500 users
- Remote release available on Office function locks
Programming options
- Basic users can Enter assigned PIN code to unlock door momentarily from normally locked state
Managers can:
- Assign or delete basic user PIN codes
- Be assigned toggle code privileges to change the lock to an unlocked state and back when desired
Administrators can:
- Assign or delete basic user PIN codes
- Change programming codes
- Adjust desired relock delay from 1-120 seconds
- Put lock into freeze state that cannot be toggled
- Use a pass-through code to momentarily unlock regardless of current state
- Disable or enable remote features like release or occupancy indication where available
Additional
- Programmable privacy function option provides lighted occupancy indication when in use
- Normal, toggle, pass through, and freeze credential attributes available
- Battery life - up to 2 years with 4 AA batteries
- Exterior Temp: -31° to 151°F (-35° to 66°C)
- Interior Temp: 32° to 120°F (0° to 49°C) (battery)
- Humidity: 0 - 100% non-condensing
Credential Support
- Keypad (3-6 digit PIN)
Functions
Storeroom (70)
- Lock is normally secure
- If needed, a toggle code can be used to change to a locked or unlocked state
- No interior button—the state of the lock cannot be changed from the inside
Office/Classroom (50)
- Lock is normally secure
- Pressing the interior push button allows users to leave door unlocked
- Optional remote release (wired)
Privacy (40)
- Pressing the interior push button disables normal electronic access from the exterior (lock will reset to normal locked status after egressing or pressing push button again)
- Programmable lighted occupancy indication option
Certifications
- ANSI/BHMA A156.25 locked outdoor
- Exit trim - ANSI/BHMA A156.3, Grade 1
- UL 294
- ULC S319
- UL 10C 3 hour
- FCC Part 15
- ADA compliant
