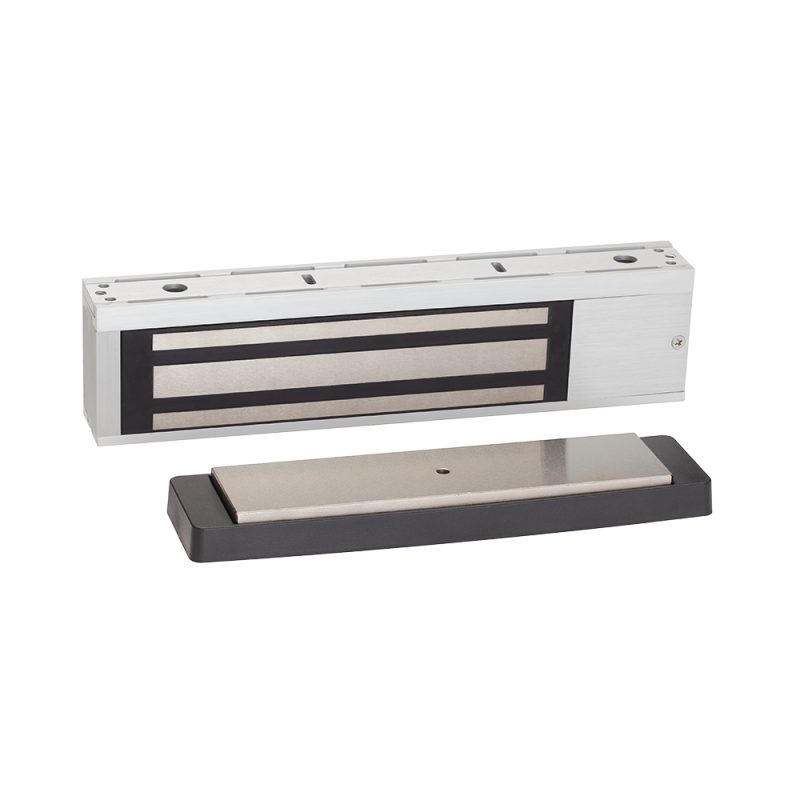

Schlage M490/492 Max Security Electromagnetic Lock

$790.68

Model:: M490/492

Item is normally in stock and ships out within 2-3 Business days (excluding transit time).

If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@FBIsecurity.com
or call us for pricing 800-523-2924
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Schlage M490/492 Max Security Electromagnetic Lock

The Schlage M490 is used as part of an electronic access control system usually combined with request-to-exit devices and credential readers. Standard features include automatic voltage selection, field-selectable handing, and bayonet mounting bracket for easy hands-free installation. The "Plus" model adds intelligent sensing and reporting features needed for integration with access control systems.

All Schlage electromagnetic locks come with a limited lifetime warranty on the magnetic coil assembly for added confidence in the longevity of these robust products.

Features

Traffic control: 1,500 lb. rated hold force
Fail-safe operation on single or double doors
Optional mounting kits available for top jamb mount, double door and HERCULITE brand glass doors
Automatic voltage selection (AVS) for 12 and 24 VDC
Bayonet design eliminates need to hold magnet overhead while mounting bracket is installed
Symmetrical design speeds in-field handing
Armature mount pivot feature compensates for slight opening imperfections for a better bond
Plus featured models are designated with a "P" and include magnetic bond sensor (MBS), relocking time delay (RTD) and door position switch (DPS)
Plus models have option for combined anti-tamper switch with magnetic bond sensor in one kit (ATS/LED)
Single door models convert to double with optional bracket
UL10C listed for positive pressure fire tests of door assemblies: 3 hour
UL1034 burglary-resistant electronic locking mechanisms
UL 294 listed for access control system
ANSI/BHMA A156.23 Grade 1
cUL
CSFM

Specifications

M490/M490P: 1,500 lb. hold force
M490/M490P Current draw: .65A @ 12 VDC, .35A @ 24 VDC
M490/M490P weight: 14 lbs.
M492/M492P: 1,500 lb. per leaf hold force
M492/M492P Current draw: 1.3A @ 12 VDC, .7A @ 24 VDC
M492/M492P weight: 28 lbs.
Operating temperature: 0deg. to 49deg. C (32deg. to 120deg. F)
Finish: Aluminum housing in 628 satin finish
Wire gauge: 14-22 AWG

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
