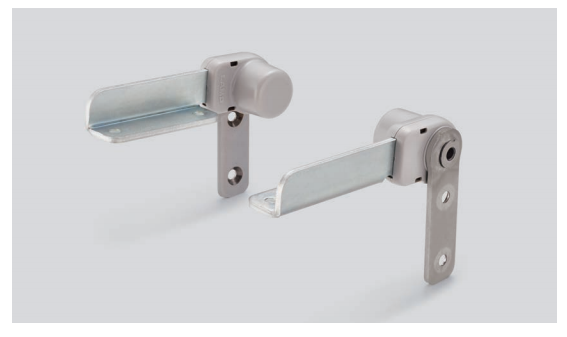

Sugatsune HG-RCT12-C Cabinet Ratchet Hinge
$181.40
- Model:
-
HG-RCT12-C
-
Item is normally in stock and ships out within 3-5 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Sugatsune HG-RCT12-C Cabinet Ratchet Hinge
Features
- Ratchet mechanism holds at angles in 5 degree increments from closed to opened position.
- Lift up to the fully open position to release the ratchet mechanism.
- The friction (resistance) function works even when released for safe operation.
Remarks
- Use in pairs.
- Ensure the cabinet has enough rigidity. Otherwise, the ratchet mechanism may not function.
- When the mounting width of hinge is more than 400mm, the ratchet mechanisms may not work simultaneously on the left and right.
Specifications
| Material | - | Steel, Polycarbonate |
| Finish | - | Nickel, Light Gray |
| Weight of Item (g) | - | 350 |
| Length or Depth of Item when closed (in) | - | 4.4375 |
| Height of Item (in) | - | 3.125 |
| Width of Item (in) | - | 1.4375 |
| Max. Torque (lbs-in/pr) | - | 354.96 |
| Holes | - | 4 |
| All-Stainless Steel | - | N |
| Are Fasteners Included | - | N |
| Are Fasteners Required | - | Y |
| Fasteners Type | - | 5 mm self tapping screw |
| Is CA Prop 65 Compliant | - | N |
| Is NSF Compliant | - | N |
| Is RoHS Compliant | - | Not Compliant |
| Is Accessory | - | N |
Applications
- For angle adjustment of folding table, touch panel, keyboard, etc.
