HES 4500 Filler Plates and Trim Enhancer Kit for Electric Strikes

$30.60

Model:: 1500-106

Item normally ships out within 1-2 Weeks (excluding transit time).

If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@FBIsecurity.com
or call us for pricing 800-523-2924
or send us a request using the form below and we will respond to you by email.

Product Name

SKU

Ask A Question

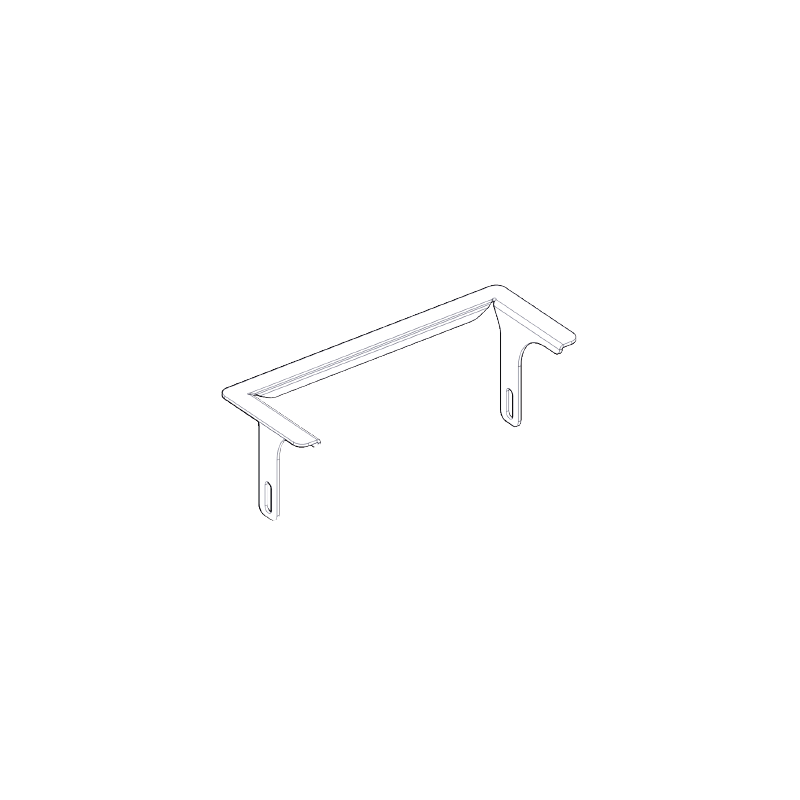

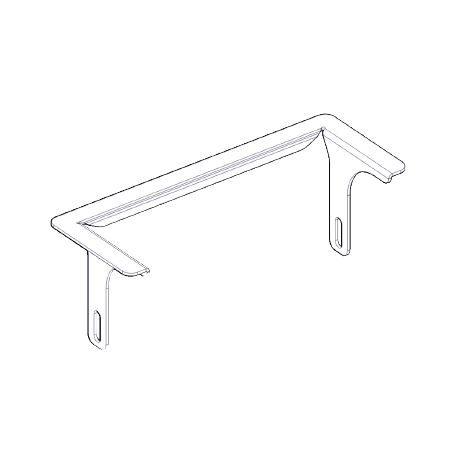

Details: HES 4500 Filler Plates and Trim Enhancer Kit for Electric Strikes

HES 1500 Series Electric Strike

The HES 1500 and 1600 Series Electric Strikes set a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complimentary to other surrounding door hardware and blend in with the opening due to the fully finished design available in seven finishes.

ANSI Lock Description	Manufactuter	Electric Strikes
Mortise, Locksets, Mortise lockset, without a deadbolt	Arrow, Baldwin, Best, Marks, Omnia, PDQ	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006KM, RF1006-KM, IC1006-KM, 1500C, 4500C, RF4500, IC4500, 742-75
	Corbin Russwin, ML2000 and, Arrow	1600CS, 1006CS, 1600CLB, RF1006CLB, IC1006CLB 1600-1LB, 1006-KM, , RF1006-KM, IC1006-KM, 1500C, 4500C, RF4500, IC4500, 8500-852K, RF8500-852K, IC8500-852K, 742-75
	Sargent 7700, 8100, Schlage L*	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KD, RF1006-KD, IC1006-KD, 1500C, 4500C, RF4500, IC4500, *8500-852L, RF8500-852L, IC8500-, 852L(Schlage L), 742-75
	Sargent 7900, 8200, 9200	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KM, RF1006-KM, IC1006-KM, 1500C, 4500C, 8500-851M, RF8500-851M, IC8500-851M, 742-75
	Accurate, Falcon, Kaba, Ilco/Unican, Yale 8700, (manufactured, after 2005), Yale 8800	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KD, RF1006-KD, IC1006-KD 1500C, 4500C, RF4500, IC4500, 8500-852M, RF8500-852M, IC8500-852M
Mortise, Locksets Mortise lockset, with a , 1" deadbolt	Accurate, Almet, Arrow, Baldwin, Best, Marks, Corbin, Russwin, Falcon, Omnia, PDQ Schlage	1600CS, 1006CS, 1600CDB, 1006CDB, RF1006DBL, IC1006CDB, 1600-1DB, 1006-AM, 1006-HM, 1006-, NM, 1006T*
Mortise, Locksets Mortise lockset, with a , 1" deadbolt	Sargent, Yale	1600CS, 1006CS, 1600CDB, 1006CDB, RF1006DBL, IC1006CDB, 1600-1DB, 1006-AD*, 1006-HD, 1006-ND
Cylindrical , lockset Latchbolt for, aluminum stile, doors	All, manufacturers	5000, RF5000, IC5000, 1600-1LB, 1006-J, 7000C, RF7000, 1500C, IC7000, 5200, RF5200, IC5200
Cylindrical , lockset Cylindrical lockset, up to 5/8" throw	All manufacturers	1600CS, 1006CS, 5000, RF5000, IC5000, 7000C, RF7000, IC7000, 8000, RF8000, IC8000, 8300, RF8300, IC8300, V3, 712, 310-2
Cylindrical , lockset Cylindrical lockset, up to 3/4" throw	All Manufacturers	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-J, RF1006-J, IC1006-J, 5200, RF5200, IC5200, 1500C, 4500C, RF4500, IC4500, 4500, RF7500, IC7500, 712-75, 310-75
Rim mounted Rim mounted exit, device up to 1/2", throw	All Manufacturers	7000-789, RF7000-789, IC7000-789, 9400, RF9400, IC9400
Rim mounted Rim mounted exit, device up to 3/4", throw	All Manufacturers	7000-783, RF7000-783, IC7000-783, 7000-786, RF7000-786, IC7000-786, 9500, RF9500, IC9500, 9600, RF9600, IC9600, 310-4
Rim mounted Rim mounted exit, deadbolt	Corbin Russwin, (Secure Bolt), Yale (Square, Bolt),	9700, 310-4S

HES and Folger Adam electric strikes are designed to be installed in accordance with the ANSI/BHMA A156.31 4-7/8" jam preparation.

When accommodating a cylindrical lock, the electric strike is to be installed centerline to centerline.

When accommodating a mortise lock, the centerline of the electric strike is to be installed 3/8" above the centerline of the mortise lock, except asnoted for individual strikes. Folger Adam 712 series and 310 series will need special alignment with used with a mortise lock.

HES electric strikes are all non-handed and designed for installation in hollow metal, concrete filled metal, aluminum and wood jambs.

Folger Adam electric strikes are all non-handed and designed for installation in hollow metal, aluminum and wood jambs.
