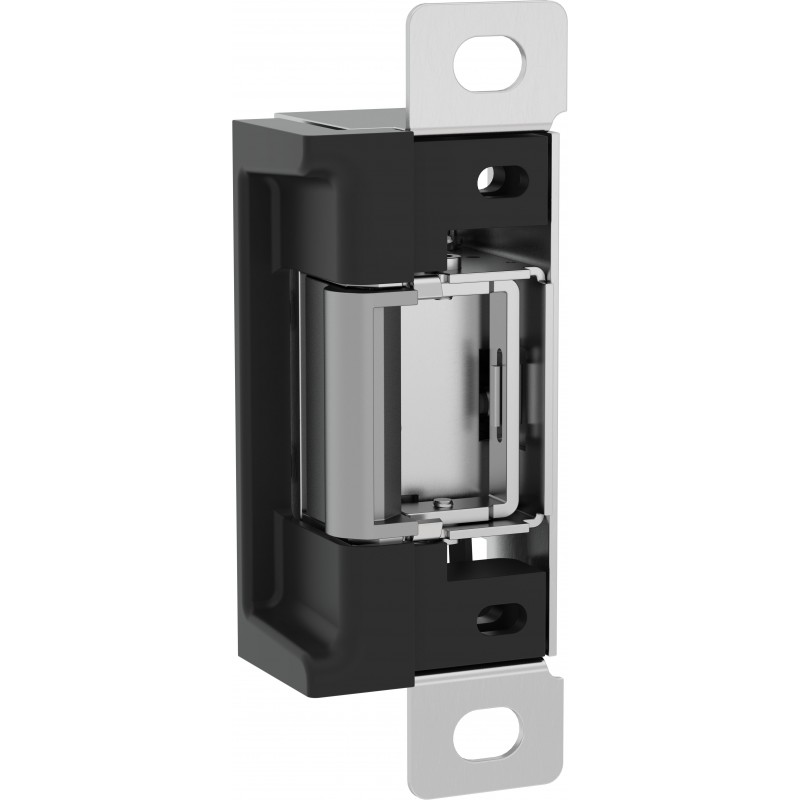

HES 7000 Electric Strike for Latchbolt Locks

$219.00

Model:: 7000-42267480

Item normally ships out within 1-2 Weeks (excluding transit time).

If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@FBIsecurity.com
or call us for pricing 800-523-2924
or send us a request using the form below and we will respond to you by email.

Product Name

SKU

Ask A Question

Details: HES 7000 Electric Strike for Latchbolt Locks

The 7000 Series offers two solutions to address preloaded doors. The in-frame adjustable feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after installation. The preload release function allows the electric strike to operate smoothly throughout the year under varying loads on the door caused by air-conditioning pressure, changes in the weather, warped doors or doors with weather stripping that often bind standard electric strikes. This unit accommodates cylindrical latchbolts up to 5/8" throw and rim exit latchbolts up to 3/4" throw.

Features

Stainless steel construction
Tamper resistant
Static strength 1,500 lbs. (791 and 792 options)
Dynamic strength 70 ft-lbs. (791 and 792 options)
Static strength 1,000 lbs. (783S, 786S and 789S options)
Dynamic strength 50 ft-lbs. (783S, 786S and 789S options)
Endurance 1,000,000 cycles
Field selectable fail secure/fail safe
Accommodates preload (fail secure only)
Horizontal adjustment
Non-handed
Internally mounted solenoid
Strike body depth 1-11/16"
Plug-in connector
Trim enhancer (791 and 792 options)
Pocket adapter (786S and 789S options)
Dual voltage 12 or 24 VDC/VAC

Specifications

Adjustability: Horizontal
Surface Mounting: Cutting required
Frame Material: Metal Wood
Shim Type: NA
Latchbolt Accommodation: Up to 5/8"
Voltage: 12/24
Monitoring Installation: Factory Configured
Monitoring Options: Latchbolt Monitoring
Endurance (cycles): 1,000,000
Dynamic Strength (ft-lbs): 70
Tamper Resistant: Yes
Fail Safe Fail Secure: Field selectable fail safe/fail secure
Grade: Grade 1
Warranty: SecuriCare five-year, no fault, no questions asked warranty
Lock Type: Exit Device Cylindrical Lock
Strike Body Depth (in): 1.6875
Strike Body Height (in): 4.87
Strike Body Width (in): 1.25

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Complete, One Box, Solutions	Standard, Models
HES		Folger Adam	Adams Rite	Von Duprin	RCI	Trine	SDC
1006CS, 1006CLB	1006J	712-75, 732-75		6211, 6400	F2164	4100	55
1006CS, 1006CLB	1006K, 1006KD, 1006KM	742-75		6210, 6400	F2164	4100
1006CS, 1006CDB	1006A, 1006AD, 1006AM
1006CS, 1006CDB	1006N, 1006ND, 1006NM			6210	F2164
1006CS, 1006CDB	1006T, 1006TD
1006CS, 1006CDB	1006H, 1006HD, 1006HM				F2164
1006CS, 1006CDB	1006E
1006CS	1006Z
	1006R
	1006J2	310-2, 310-2 3/4		6215, 6224, 6226
1006CDB	1006H-2	310-3-1		6216
4500C		742-75	7240, 7270	6210	F2164	4100
5000C	5000-501		7140, 7340, 7410, 7411	4200, 5100	L6514		25-4U
5000C	5000-501A		7101, 7160, 7300, 7440	4200, 5100	L6504		25-4U
	5000-502		7110, 7310, 7410	5100	L6508
	5000-503		7130, 7430		L6507
	5000-504
5200C	5200-501			5100	S6514, 7114, 7314	2012	45-4S
5200C	5200-501A			5100	S6504, 7104, 7304		45-4R
	5200-502			5100	S6508, 7108, 7308	2002	45-7R
	5200-503				S6507, 7107, 7307	2678	145-6R
	5200-504
7000C	7000-791	712, 732	7400, 7401, 7440
7000C	7000-792		7410, 7411
	7000-783		74R1, 74R2
	7000-786
	7000-789
7501	7501
8000C	8000-801, 8000-801A
	8000-801E, 8000-802, 8000-803
	8500 Series
9400	9400				0563	4850
9500	9500			6300	F0162	4800F
9600	9600				0162	4800
		310-20B		6222, 6225
		310-4		6212
9700	9700	310-4S				4801
		310-4-1, 310-4-2, 310-4-3, 310-4-30
		310-6-1, 310-6-2, 310-6-3, 310-6-8, 310-6-30

NOTE:This chart is offered as a convenience only. Reference should be made to the idividual manufactuer's catalogs for complete data as to exact equivalents. There may be some variation in physical size, electrical characteristics and durability between strikes of different manufacturers. HES assumes no liability for differenes between items compared. When compatibility is a concern, contact Customer Support at 800-626-7590 for application assistance. NOTE: The 109 trim adapter may be required for a neater appearance in retro fit application where the strike lop dimensions exceed 3-3/8". NOTE:This chart details the HES and Folger Adam products that can replace competitors products, but not necessarily the reverse.

ANSI Lock Description	Manufactuter	Electric Strikes
Mortise, Locksets, Mortise lockset, without a deadbolt	Arrow, Baldwin, Best, Marks, Omnia, PDQ	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006KM, RF1006-KM, IC1006-KM, 1500C, 4500C, RF4500, IC4500, 742-75
	Corbin Russwin, ML2000 and, Arrow	1600CS, 1006CS, 1600CLB, RF1006CLB, IC1006CLB 1600-1LB, 1006-KM, , RF1006-KM, IC1006-KM, 1500C, 4500C, RF4500, IC4500, 8500-852K, RF8500-852K, IC8500-852K, 742-75
	Sargent 7700, 8100, Schlage L*	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KD, RF1006-KD, IC1006-KD, 1500C, 4500C, RF4500, IC4500, *8500-852L, RF8500-852L, IC8500-, 852L(Schlage L), 742-75
	Sargent 7900, 8200, 9200	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KM, RF1006-KM, IC1006-KM, 1500C, 4500C, 8500-851M, RF8500-851M, IC8500-851M, 742-75
	Accurate, Falcon, Kaba, Ilco/Unican, Yale 8700, (manufactured, after 2005), Yale 8800	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KD, RF1006-KD, IC1006-KD 1500C, 4500C, RF4500, IC4500, 8500-852M, RF8500-852M, IC8500-852M
Mortise, Locksets Mortise lockset, with a , 1" deadbolt	Accurate, Almet, Arrow, Baldwin, Best, Marks, Corbin, Russwin, Falcon, Omnia, PDQ Schlage	1600CS, 1006CS, 1600CDB, 1006CDB, RF1006DBL, IC1006CDB, 1600-1DB, 1006-AM, 1006-HM, 1006-, NM, 1006T*
Mortise, Locksets Mortise lockset, with a , 1" deadbolt	Sargent, Yale	1600CS, 1006CS, 1600CDB, 1006CDB, RF1006DBL, IC1006CDB, 1600-1DB, 1006-AD*, 1006-HD, 1006-ND
Cylindrical , lockset Latchbolt for, aluminum stile, doors	All, manufacturers	5000, RF5000, IC5000, 1600-1LB, 1006-J, 7000C, RF7000, 1500C, IC7000, 5200, RF5200, IC5200
Cylindrical , lockset Cylindrical lockset, up to 5/8" throw	All manufacturers	1600CS, 1006CS, 5000, RF5000, IC5000, 7000C, RF7000, IC7000, 8000, RF8000, IC8000, 8300, RF8300, IC8300, V3, 712, 310-2
Cylindrical , lockset Cylindrical lockset, up to 3/4" throw	All Manufacturers	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-J, RF1006-J, IC1006-J, 5200, RF5200, IC5200, 1500C, 4500C, RF4500, IC4500, 4500, RF7500, IC7500, 712-75, 310-75
Rim mounted Rim mounted exit, device up to 1/2", throw	All Manufacturers	7000-789, RF7000-789, IC7000-789, 9400, RF9400, IC9400
Rim mounted Rim mounted exit, device up to 3/4", throw	All Manufacturers	7000-783, RF7000-783, IC7000-783, 7000-786, RF7000-786, IC7000-786, 9500, RF9500, IC9500, 9600, RF9600, IC9600, 310-4
Rim mounted Rim mounted exit, deadbolt	Corbin Russwin, (Secure Bolt), Yale (Square, Bolt),	9700, 310-4S

HES and Folger Adam electric strikes are designed to be installed in accordance with the ANSI/BHMA A156.31 4-7/8" jam preparation.

When accommodating a cylindrical lock, the electric strike is to be installed centerline to centerline.

When accommodating a mortise lock, the centerline of the electric strike is to be installed 3/8" above the centerline of the mortise lock, except asnoted for individual strikes. Folger Adam 712 series and 310 series will need special alignment with used with a mortise lock.

HES electric strikes are all non-handed and designed for installation in hollow metal, concrete filled metal, aluminum and wood jambs.

Folger Adam electric strikes are all non-handed and designed for installation in hollow metal, aluminum and wood jambs.

Electric strikes can be installed in a wide range of swinging door applications.

Consider these factors to help determine the right electric strike for your project.

Assess the type of frame and health of the opening

Material: hollow metal, aluminum or wood?
Adams Rite offers electric strikes for aluminum, hollow metal or wood doors. Please see the Adams Rite catalog to order the compatible model for your door application.
Type: hollow or concrete-filled? Concrete-filled may require additional tools. Consider using no-cut electric strikes.
Health of door and frame: can frame or door irregularities be fixed prior to electric strike installation?

Determine if door assembly has special requirements

Fire-rated Assembly (NFPA 80 Fire Doors)
Windstorm Resistant (tested to sustain winds up to 150 mph)
Outdoor Rated (UL 1034)
Preload Capable

Identify and test existing door hardware

Existing locking hardware determines the compatible electric strike and overall function of the opening

Common Accessory

2005M3 Smart Pac® III

Reduces initial voltage in timed or fail safe operations by 25% to extend the life of the electric strike.

Addition of Smart Pac to any HES electric strike extends the 5-year no-fault warranty to a 10-year no-fault warranty.

	Cylindrical with 1/2", 5/8", 3/4" Latchbolt
HES 1600, 1006, 1500	Fire Rated	Windstorm Resistant	Outdoor Rated
HES 5000	Outdoor Rated
HES 5200
HES 7501	Fire Rated	Preload	up to 15 lbs
HES 8000	Outdoor Rated	no-cut
HES 8300	Fire Rated	Outdoor Rated
Adams Rite 7100 Series
Adams Rite Ultraline® 7400 Series	Preload	up to 25 lbs

			Mortise Lockset without a Deadbolt up to 3/4" Throw Latchbolt
HES 1600, 1006, 1500	Fire Rated	Windstorm Resistant	Outdoor Rated	HES 8500	Fire Rated	Outdoor Rated	no-cut
Adams Rite 7160
			Mortise Lockset with a 1" Deadbolt
HES 1600, 1006	Fire Rated	Windstorm Resistant	Outdoor Rated

		Rim Exit Devices up to 1/2" Throw Latchbolt
HES 9400	Outdoor Rated	no-cut surface mounted	Adams Rite Ultraline® 74R2	Preload	up to 25 lbs
		Rim Exit Devices up to 3/4" Pullman Latchbolt
HES 7000	Preload	up to 15 lbs
HES 9500	Fire Rated	Outdoor Rated	no-cut surface mounted
HES 9600	Windstorm Resistant	Outdoor Rated	no-cut surface mounted
Adams Rite Ultraline® 74R1	Preload	up to 25 lbs
		Rim Exit Devices with Corbin Russwin SecureBolt® or Yale SquareBolt®
HES 9700	Fire Rated	Windstorm Resistant	Outdoor Rated	no-cut surface mounted
