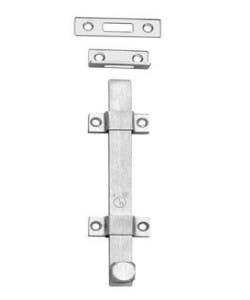

Rockwood 580-8 Surface Bolt 8" Bolt Length

Rockwood Mfg
$31.00
Model:
580-8
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
printer Print
Email to a Friend
Request for Quote

Email us your RFQ sales@FBIsecurity.com
or call us for pricing 800-523-2924
or send us a request using the form below and we will respond to you by email.

Details: Rockwood 580-8 Surface Bolt 8" Bolt Length

Specification:

Material: Steel, Stainless Steel

Fastener: 8 ea. #10 × 1¼ FH SMS, 8 ea. 10-24 × 1 FH MS

Other: 1⅛" bolt throw,¼" ×¾" bolt material.

Feature:

  • UL listed for use on inactive leaf of a pair of 3-hour labeled fire doors.
  • Includes a universal top strike and a mortise bottom strike.

  • Option:

    Sex bolts available for extra secure mounting.

    Bolt Length: 8"

    Weight: 1.1 lbs.

    ANSI A156.16: L04161

Rockwood Part No.DescriptionBurnsDonjoHagerHiawathaIvesTrimco
47-PBPush Bar422147130S1081 LPB91001741
90Combination Plate1001874121LD251---1821
91-RKWCombination Plate89---120L1456---1820
94Flush Pull459184815N1459---1115
106-RKWDoor Pull25A153E523E8102-61194-1
107Door Pull25B163G523A8102-81194-2
110-RKWDoor Pull26B194G535B8103-81195-1
111-RKWDoor Pull26C204J536B8103-01195-2
112Door Pull26D214L537B8103-21195-3
122-RKWDoor Pull20A302E559A8105-61139-1
123Door Pull20B312G5598105-81139-2
130-RKWDoor Pull14367N---8113-51102T
131-RKWDoor Pull16358N---8112-51102S
132-RKWDoor Pull---106N5 1/2 P81111117-1
137Door Pull12---5N5 Series8114-51109-1
193Door Pull194419N1458A81211134
290Corner Guard---1290185G---------
295Corner Guard---1290185G---------
308Door Edge306---181HDE-1AJ7308KE35-1
309Door Edge307---181KDE-2AJ7309KE36-1
310Door Edge308---181MDE-3C7310KE37-1
311Door Edge309---181QDE-4CJ7311KE38-1
400Wall Stop5601412230W---WS402CVX1270CXCP
403Wall Stop5651413234W---WS402CCV1270CVCP
406Wall Stop5701406232W---WS407CVXW1276CS
409Wall Stop5751407236W---WS406CCVW1276CCS
441Dome Stop5101440241F---FS4381210
442Dome Stop5201442243F---FS4381212
443Dome Stop5201443243F---FB171212
449Dome Stop Riser5251446246B---R4351210AR
455Straight Roller Stop6321488273W---RS4701245
456-RKWStraight Roller Stop6301486272W---RB4711244
467-RKWFloor Mount Door Stop------------FS18L---
470Floor Mount Door Stop535---267S---FS4481201
471Floor Mount Door Stop5351471267F---FS4441201
473Floor Mount Door Stop5361473268F---FS4461224-5
475Floor Mount Door Stop5301475255W---WS11X1205
476Floor Mount Door Stop531---256W---WS4491207
477Floor Mount Door Stop5311477256W---WS4451207
485Floor Mount Door Stop5291453258F---FS4511234
490Floor Mount Door Stop5331514326W---WS401254
491-RKWFloor Mount Door Stop5341520326F---FS401261
505-RKWDoor Stop---1501325W---611235
528Heavy Duty Hinge Pin Stop5781502BL6212---69---
555Manual Flush Bolt5901555282D1520FB4583917
557Wood Door Flush Bolt5911557283D---FB3583913
570Dust Proof Strike5451570280X382DP13910
576Coordinator75002080298D---COR7G3093
580Surface Bolt5981580275D---SB453-83922
590Roller Latch50017001442---RL30---
591Roller Latch550 X SP217021443---RL30A1559C
593Roller Latch555---318S---RL11521559BL
608-RKWDoor Silencer5001608307D---SR641229A
622Door Viewer852ULDV-1801756---698976
640Residential Flush Bolt59216401413---2613999SE
802Coat Hook600300------5713070-1
890Pocket Door Pull---PDL-100330D---9901064
891Privacy Latch---PDL-101330L---9911065
2672Door Coordinator76722021297D---COR523094B2
2842Auto Flush Bolt78421560292D---FB31P3810X3810
2942Auto Flush Bolt79421562291D---FB41P3815X3815
11147Push Bar & Straight Pull Set422 X 26C20147153D---9103-01731
106 X 70BPull Plate5325A701533E---8302-61017-2
107 X 70CPull Plate5425B711633G---8302-81017-3B
110 x 70CPull Plate5426B---34G---8303-81018-3
111 X 70CPull Plate5426C---34J---8303-01018-3B
132 X 70BPull Plate5310701036N---8311-51010-2
441HHigh Dome Stop5211447242F---FS4391211
461LKick Down Door Stop5851487271D---FS452-51220-5
630-4Surface Bolt---1630279D---543920-4
70BPush Plate537030S200D82001001-2
70EPush Plate567230S200H82001001-9
70FPush Plate577330S200K82001001-11
73CPush Plate747880S300F---1809-4
BF150Offset Door Pull29B115011G668---1191-1
BF156Offset Door Pull---115612G6588190-8---
BF157Offset Door Pull---115712J658A8190-01191-3
BF15747Push Bar & Offset Pull Set422 X 39C1157147159D---9190-01737
BF158Offset Door Pull39D115812L658B8190-21191-4
DF86Door Edge Filler Plate---EF-86336B---------
DFF4Frame Hinge Filler Plate---HF-45336L---------
DHF4BBeveled Door Hinge Filler Plate---SHF-45336F---------
K1038Kick Plate .038------198S------KA038
K1050Kick Plate .050------190S---8400KS050
RM201Door PullM39D------HG121M39D1191-4J
RM202Door Pull------23QHG122---1191-5J
RM301Door PullM26D---10LHG111M26D1195-3J
RM302Door Pull------10QHG112---1195-6J
TYPE 1Mounting Hardware11TYPE1---TYPE STDE
TYPE 5Mounting Hardware53TYPE3---TYPE NG
TYPE 6Mounting Hardware66TYPE5---TYPE LJ
VRT24Vandal Resistant Trim------------VR9001096HA
VRT26Vandal Resistant Trim------------VR900LLP1097HA
